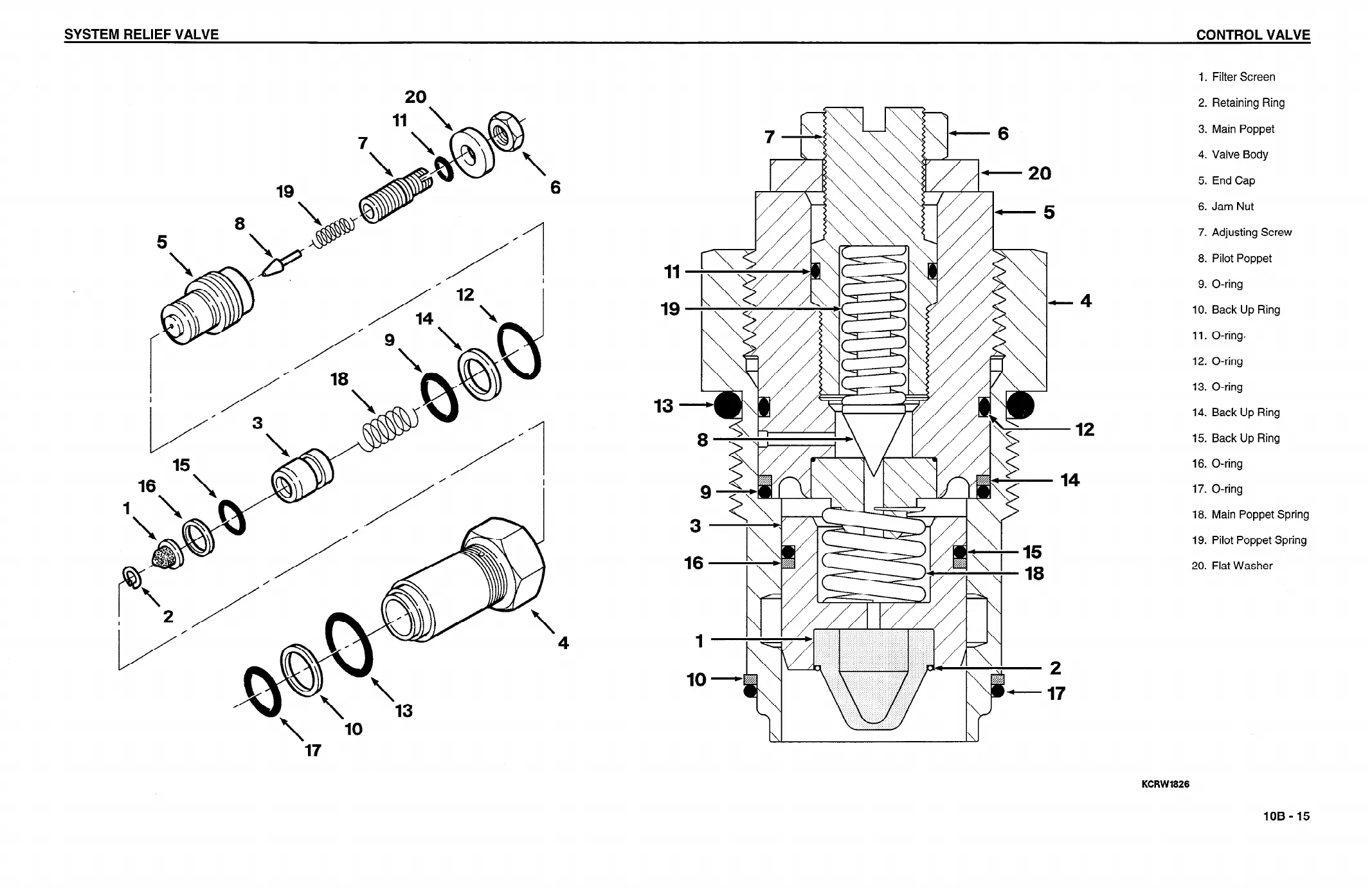

SYSTEM RELIEF VALVE
CONTROL VALVE
6
16
1.
Filter Screen
2. Retaining Ring
3. Main Poppet
4. Valve Body
5. End Cap
6.
Jam Nut
7. Adjusting Screw
8. Pilot Poppet
9. O-ring
10.
Back Up Ring
11. O-ring,
12. O-ring
13.
O-ring
14. Back Up Ring
15. Back Up Ring
16.
O-ring
17.
O-ring
18. Main Poppet Spring
19. Pilot Poppet Spring
20. Flat Washer
KCRW1826
10B - 15
