7B - 5

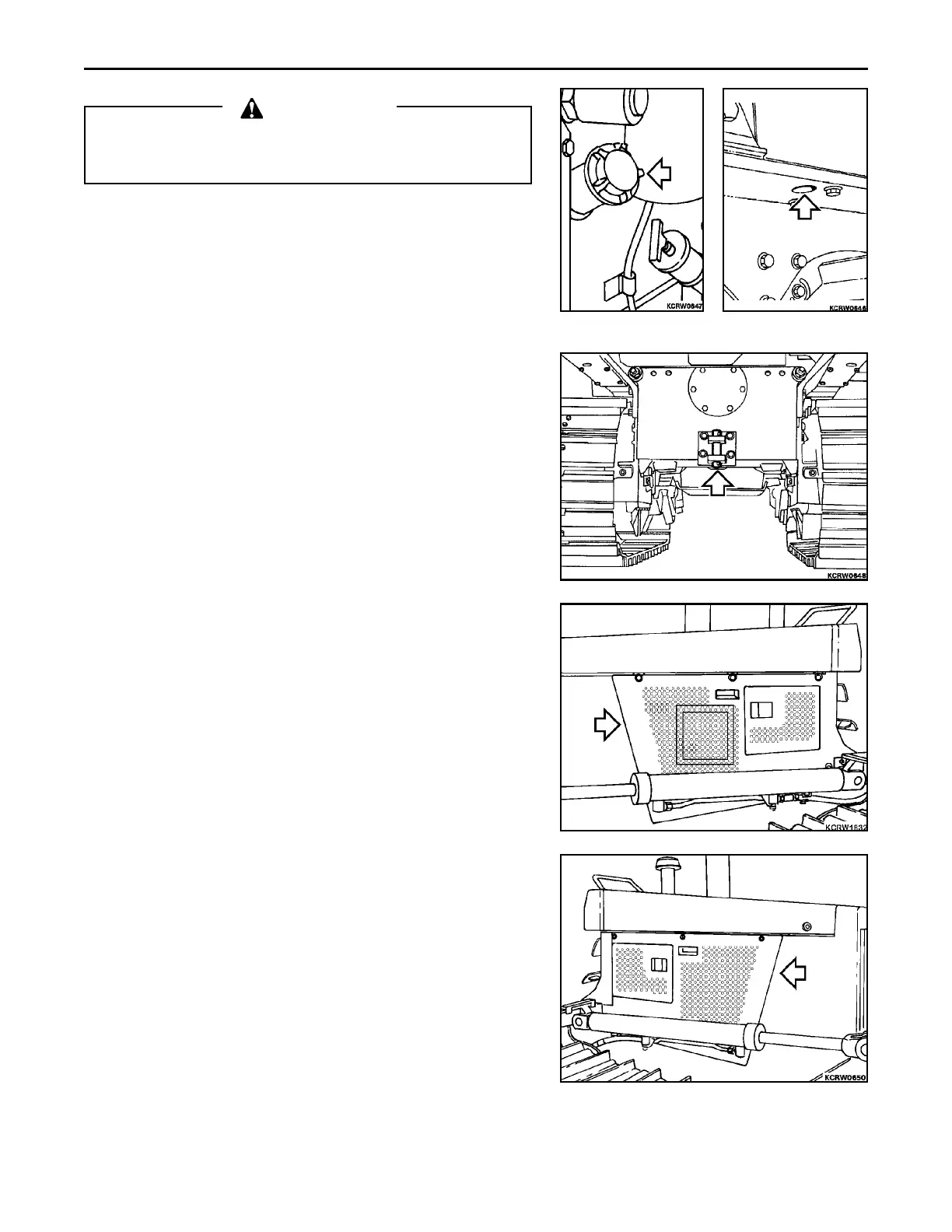

REMOVAL TORQUE CONVERTER

WARNING

Be sure blade and any rear mounted equipment has been

lowered to the ground or on suitable blocking. Turn the

master switch to the off position and remove key.

1. Drain hydraulic reservoir. Refer to the OPERATION & MAINTE-

NANCE MANUAL.

2. Drain transmission system. Refer to the OPERATION &

MAINTENANCE MANUAL.

3. Remove engine left side door.

4. Remove engine right side door.
