STEERING DRIVE BRAKE CYLINDER VALVE
7E - 86

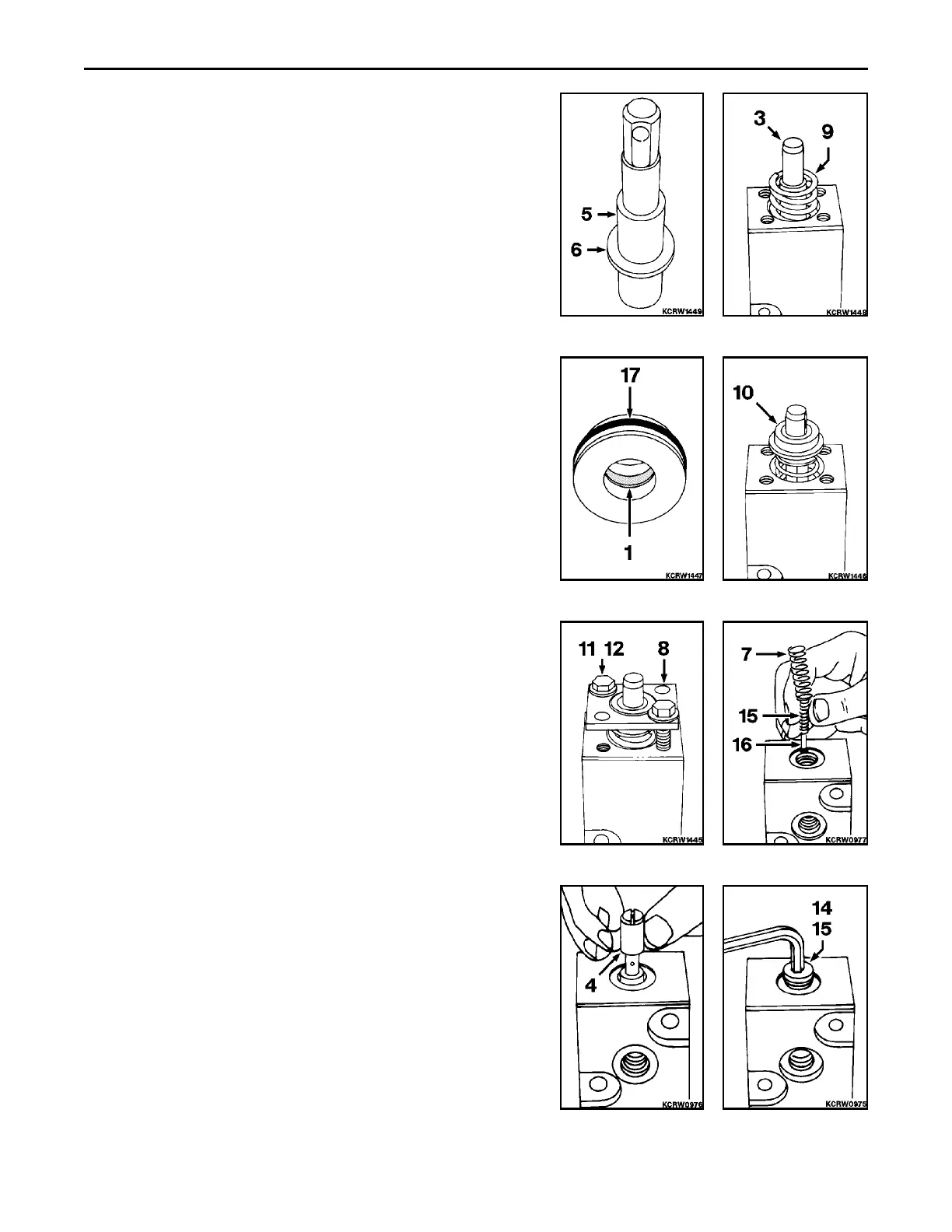

REASSEMBLY
REMARK
Callouts from exploded and cross section views correspond with
callouts in following steps.
1. Install retainer washer (6) and spool stop (5) to spool.
2. Install spool (3) and return spring (9) into valve housing.
3. Install new spool wiper (1) and o-ring (17) to seal retainer.
4. Install seal retainer (10) over spool being careful not to cut or
slice wiper.
5. Install end cover (8) to retainer and secure with two longer bolts.
Install hardware (11 and 12) and draw retainer and spring into
housing. Be careful not to cut or slice o-ring. Remove longer
bolts and install remaining hardware. Torque bolts to 21 NCm
(16 lbf ft) ±10%
6. Install spring guide (16), inner (15) and outer (7) metering
springs into valve body.
7. Install metering spool (4), ported end up, into valve body.
8. Install end plug (14) with new o-ring (15) to valve body.
