UNDERCARRIAGE TRACK SPRING
14 - 60
REPLACEMENT
WARNING
Please observe all safety and precautionary standards as dictated
by environment and work conditions under which equipment will be
inspected, reworked and repaired. Consult SECTION 1 and your
Komatsu distributor on any and all questions regarding safety.

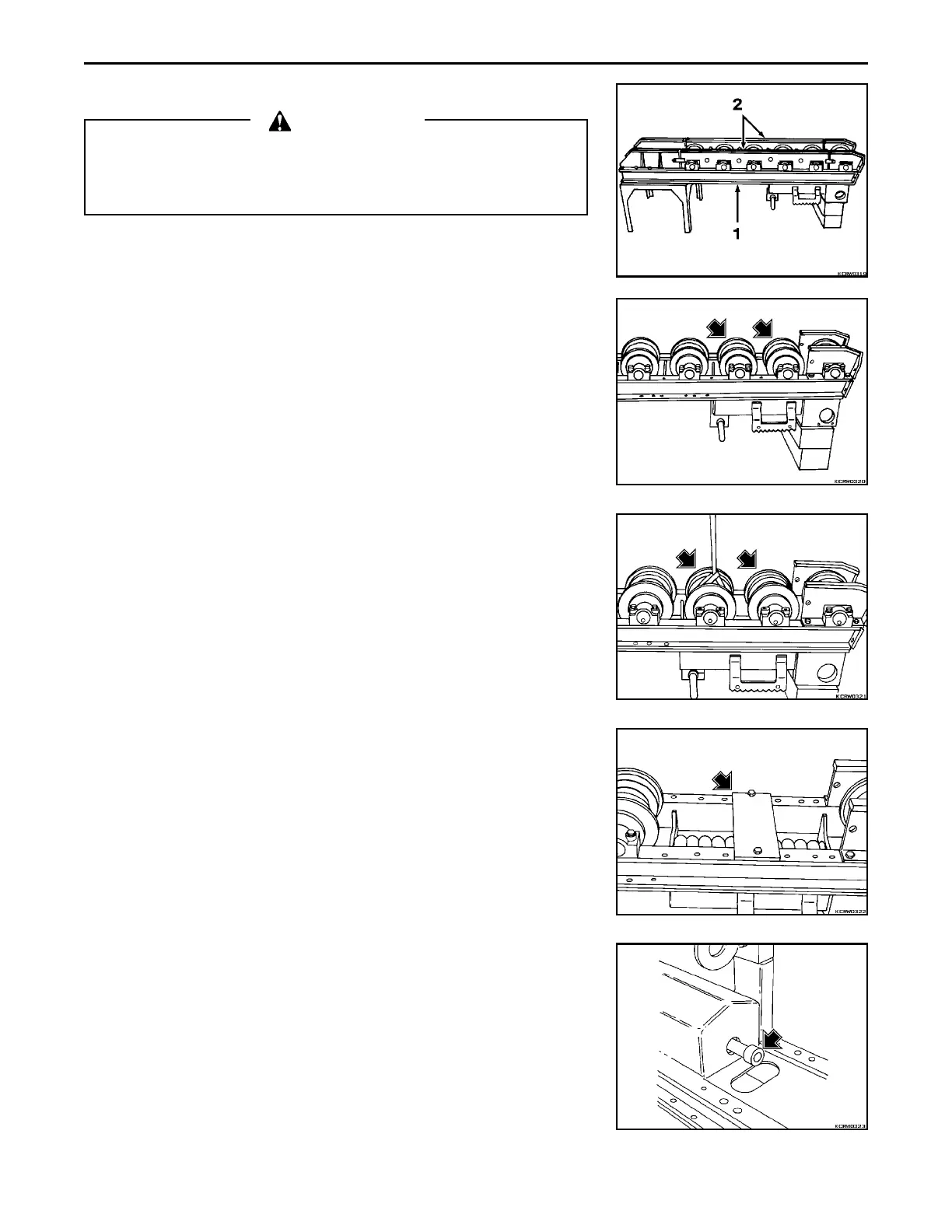

1. Remove track frame from machine as described in this section. Position
frame (1) on suitable blocking as shown. Remove track roller shields (2).
2. Remove hardware from 2nd and 3rd rear track roller.
3. Attach hoist and sling to rollers and remove.
4. Install containment plate, DR11-713-1, between track roller mounting
surfaces.
5. Insert spring bolt, DR11-713-2, through housing and spring.
