7E - 46
STEERING DRIVE PLANET GEAR CARRIER
SERVICE
REMARK
For removal of planet gear carrier, refer to DISASSEMBLY and
follow steps to planet gear carrier removal.

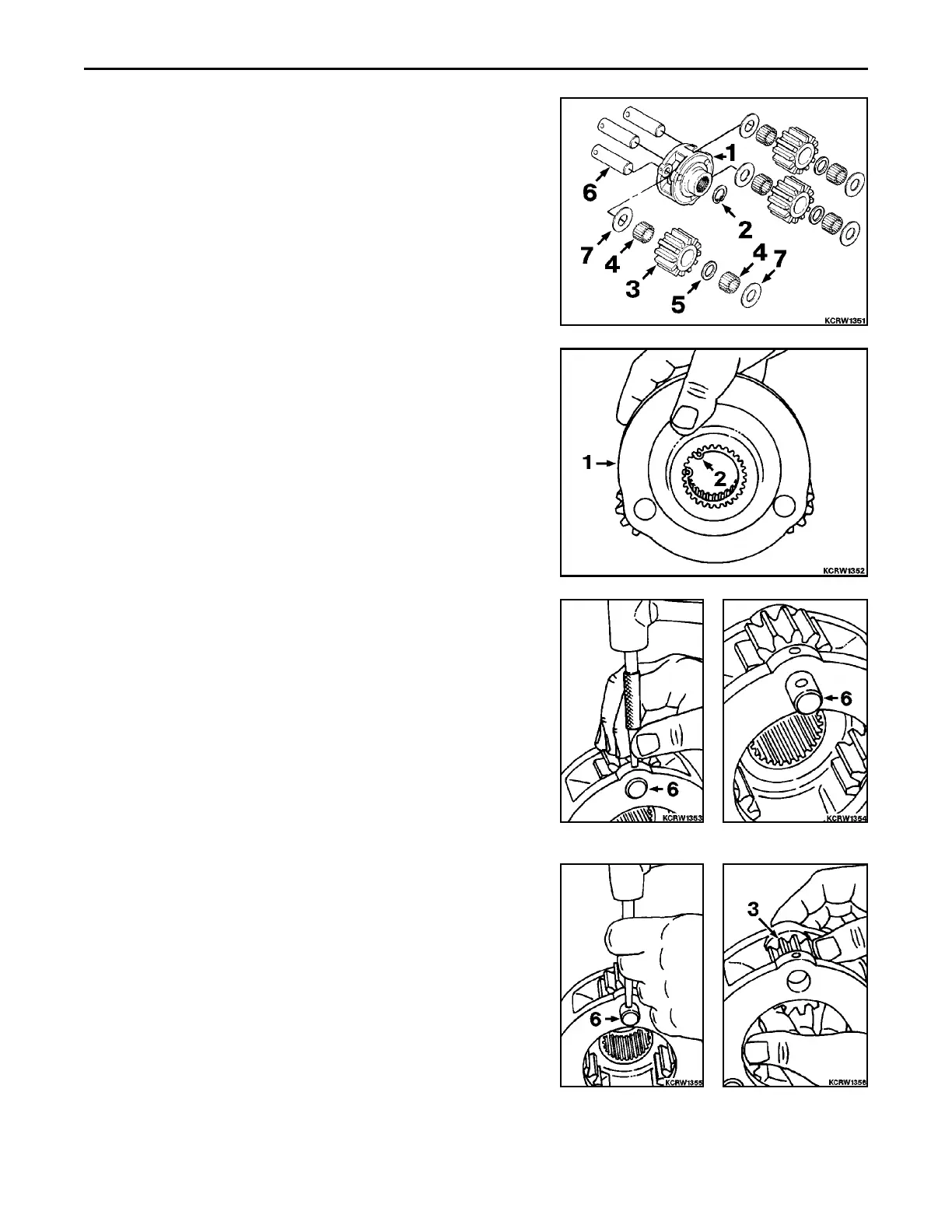

1. Planet Gear Carrier 5. Needle Bearing Spacer
2. Retaining Ring 6. Planet Gear Shaft
3. Planet Gear 7. Thrust Washer
4. Needle Bearing Kit
1. Remove retaining ring (2) from inside planet gear carrier (1).
2. Drive roll pin into shaft (6).
3. Push planet gear shaft (6) out of carrier.
4. Drive roll pin from planet gear shaft (6).
5. While supporting gear (3) assembly from inside of planet gear
carrier, remove shaft and gear. Disassemble gear and keep
shaft, gear, bearing needles, bearing spacer and thrust washers
together.
Repeat procedure for remaining five planet gears.
