COOLING RADIATOR
6 - 16
22. Remove bottom strip gaskets (9) and end gaskets (8) from
bottom tank (3).
23. Flush out the upper and lower tanks with water. Flush out the
core with water under pressure, both inside and out. If the core
is greasy, clean it with steam cleaning equipment. Clean all
remaining radiator parts. Be sure all the old gasket material is
removed. Inspect the radiator water tanks for cracks. Examine
the fins and tubes of the core for damage. Rod out the tubes to
be sure they are not restricted. Straighten bent fins if possible to
avoid air flow restrictions. Examine all hoses for cracks or
rupture and install new when in doubt. Inspect the radiator cap.
REASSEMBLY
REMARK
Callouts from exploded view correspond with callouts in
following steps.

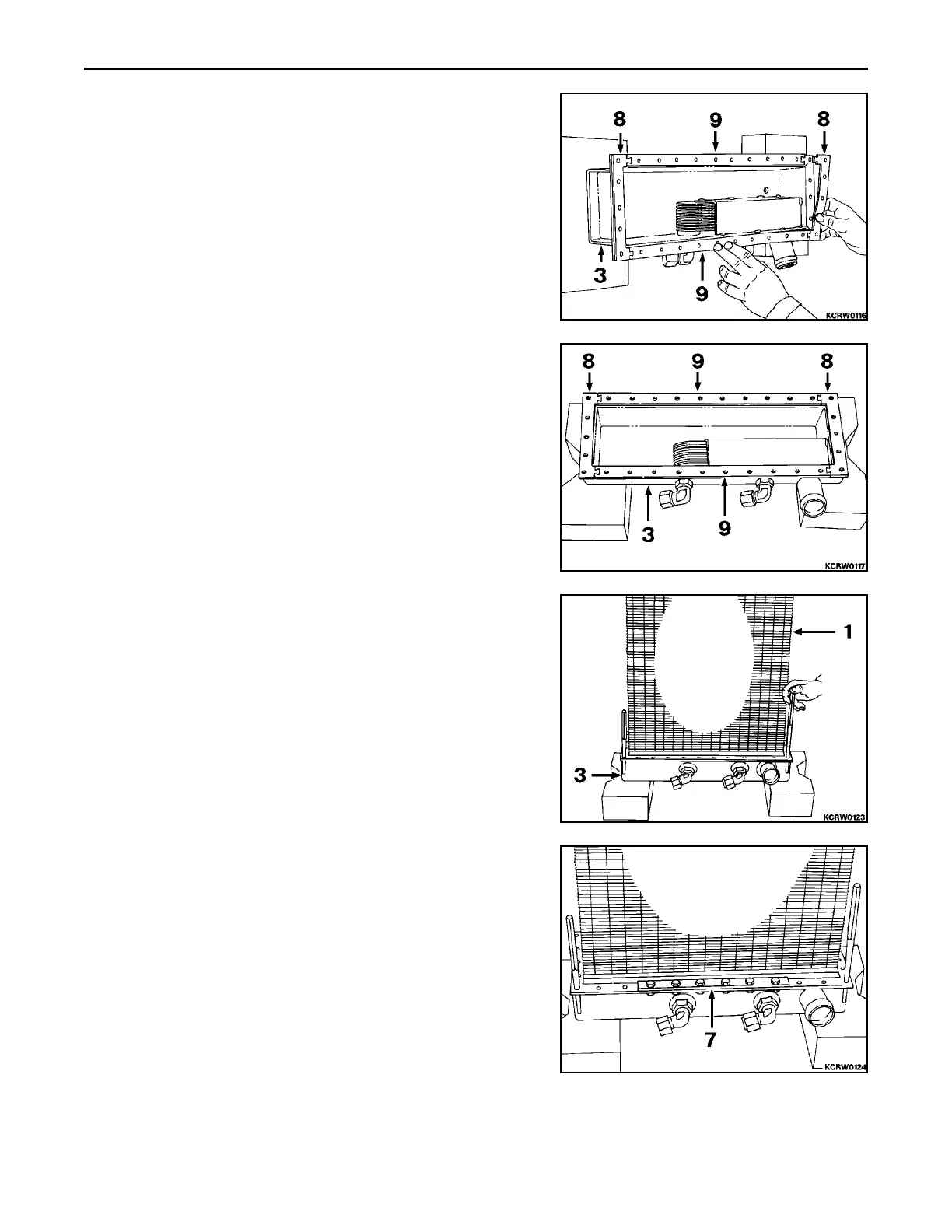

1. Position new bottom strip gaskets (9) and end gaskets (8) to
bottom tank (3).
2. Set core and header (1) on bottom tank (3) and align with pins.
3. Install lower front and rear bolting bars (7), bolts facing down.
