RADIATOR COOLING
6 - 17

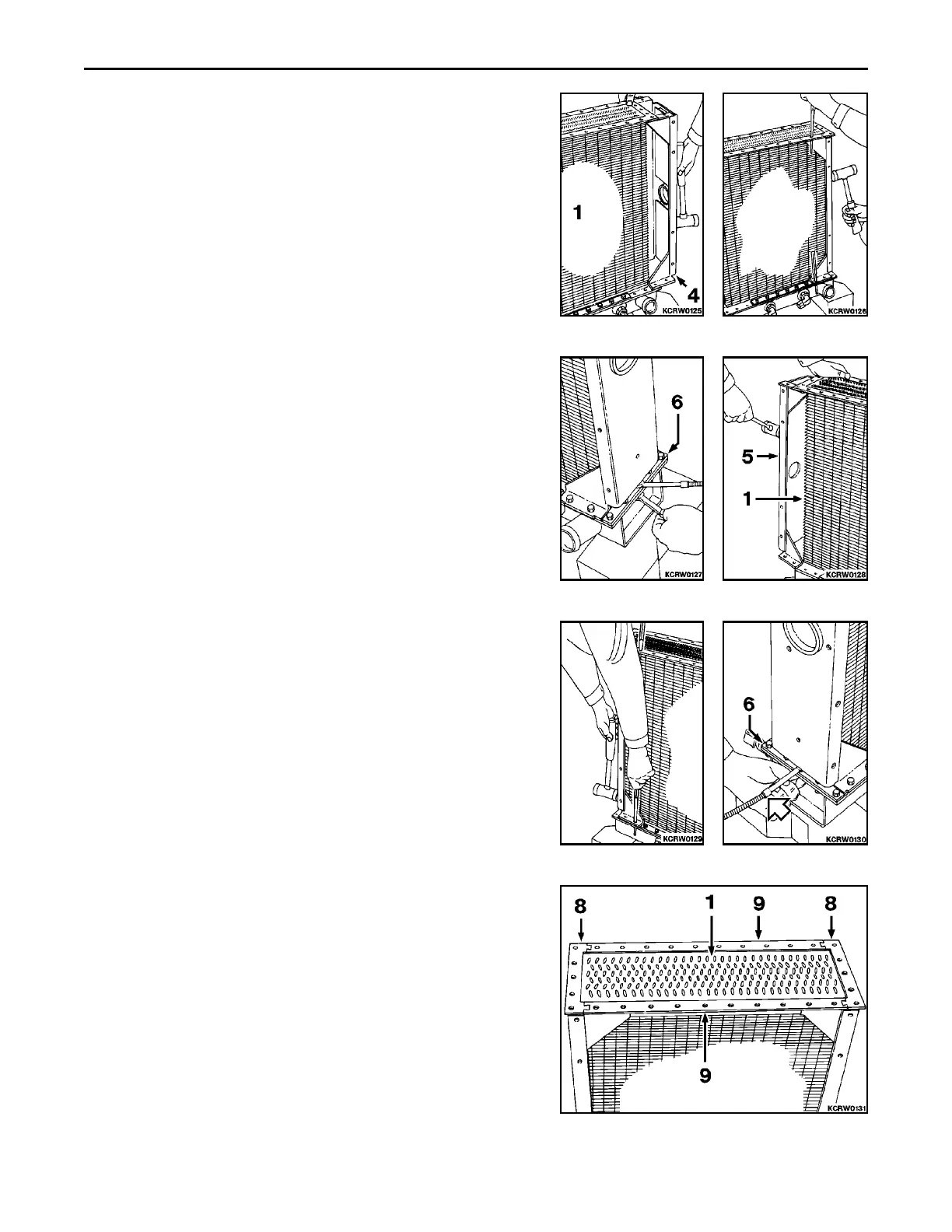

4. Start right side bracket (4) into core and header (1) using a soft
face mallet.
5. Insert aligning dowels and secure to bottom tank, bolts facing
down.
6. Position side bolting bar (6) and secure with hardware, three
inner bolts facing upward and two outer bolts facing down.
7. Start left side bracket (5) into core and header (1) using a soft
face mallet.
8. Insert aligning dowels and secure to bottom tank, bolts facing
down.
9. Position side bolting bar (6) and secure with hardware, three
inner bolts facing upward and two outer bolts facing down.
Install clip.
10. Position new top strip gaskets (9) and end gaskets (8) to core
and header (1).
