GENERAL HYDRAULICS
10 - 9

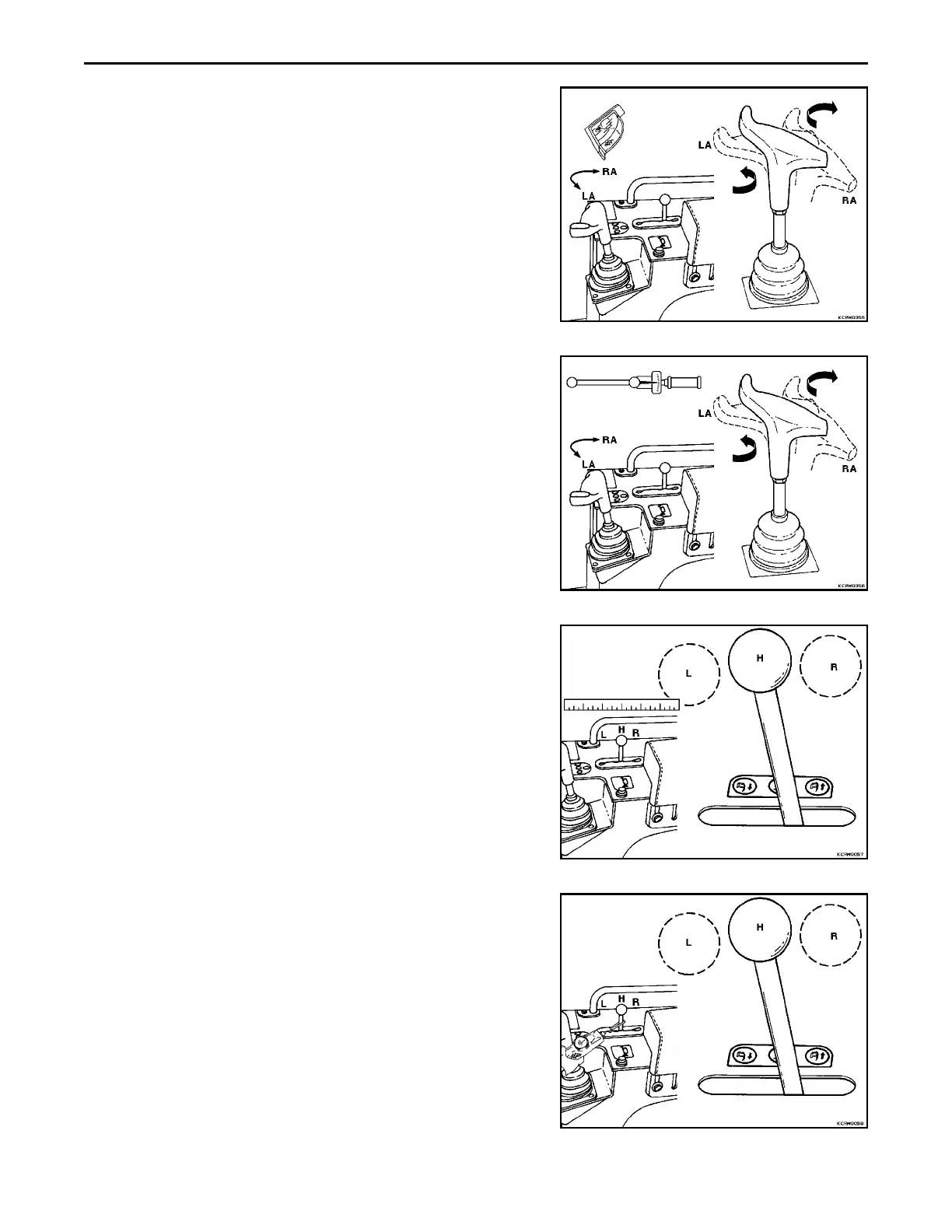

Angle Degrees
Using an angle gauge, measure travel distances in degrees from;
hold to right angle and hold to left angle at the center top of the
lever knob.
Angle Effort
Using a torque measuring device, measure the maximum effort
required when moving the lever hold to right angle and hold to left
angle.
REAR EQUIPMENT LEVER
ii Measurement Conditions
‚ Engine stopped
‚ Mounted equipment lowered to the ground
Raise and Lower Travel
Using scale, measure travel distances from hold to raise and hold
to lower at the center top of the lever knob.
Raise and Lower Effort
Using push pull scale at the base of the knob, measure the
maximum effort required when moving the lever from hold to raise
and hold to lower.
To Next Page
