BLADE BUSHINGS

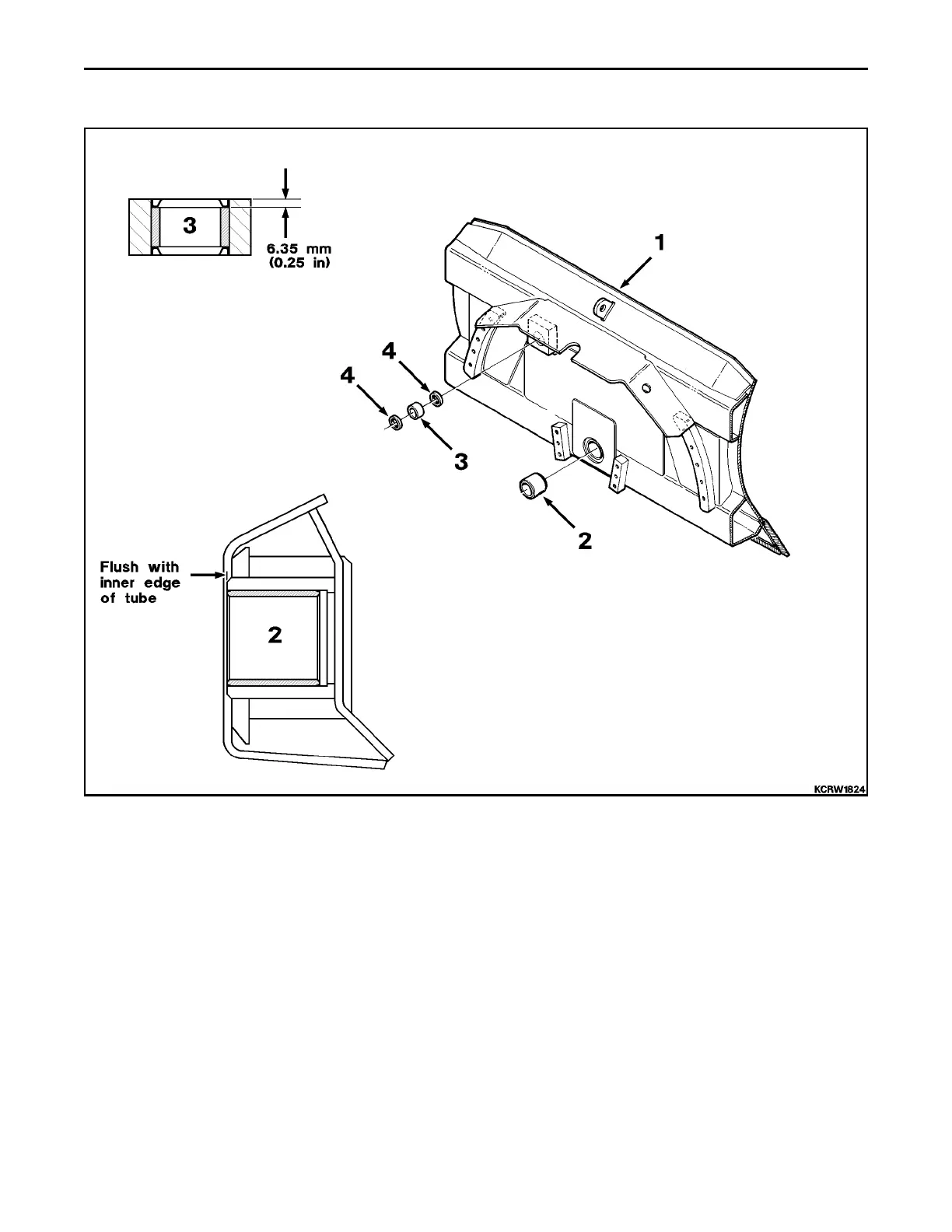

1. Blade 2. Trunnion Pin Bushing 3. Cylinder Pin Bushing 4.Pin Seal
MOUNTED EQUIPMENT BLADE BUSHINGS
BUSHING REPLACEMENT
1. Remove old bushing from blade. Press in new bushing (2) flush with inner edge of tube in blade.
2. Remove and discard pin seals (4), replace with new. Drive old bushing out. Position new bushing (3) in place and
press in to dimension shown. Install new pin seals flush with surface face by only driving in on outer steel shells.
