6. Disconnect and cap lines at top and bottom of pump and allow
pump to drain into suitable container. Remove hardware and lift
pump out of machine.
DISASSEMBLY
REMARK
Callouts from exploded and cross section views correspond with
callouts in following steps.
1. Remove and discard mounting o-ring and replace with new.

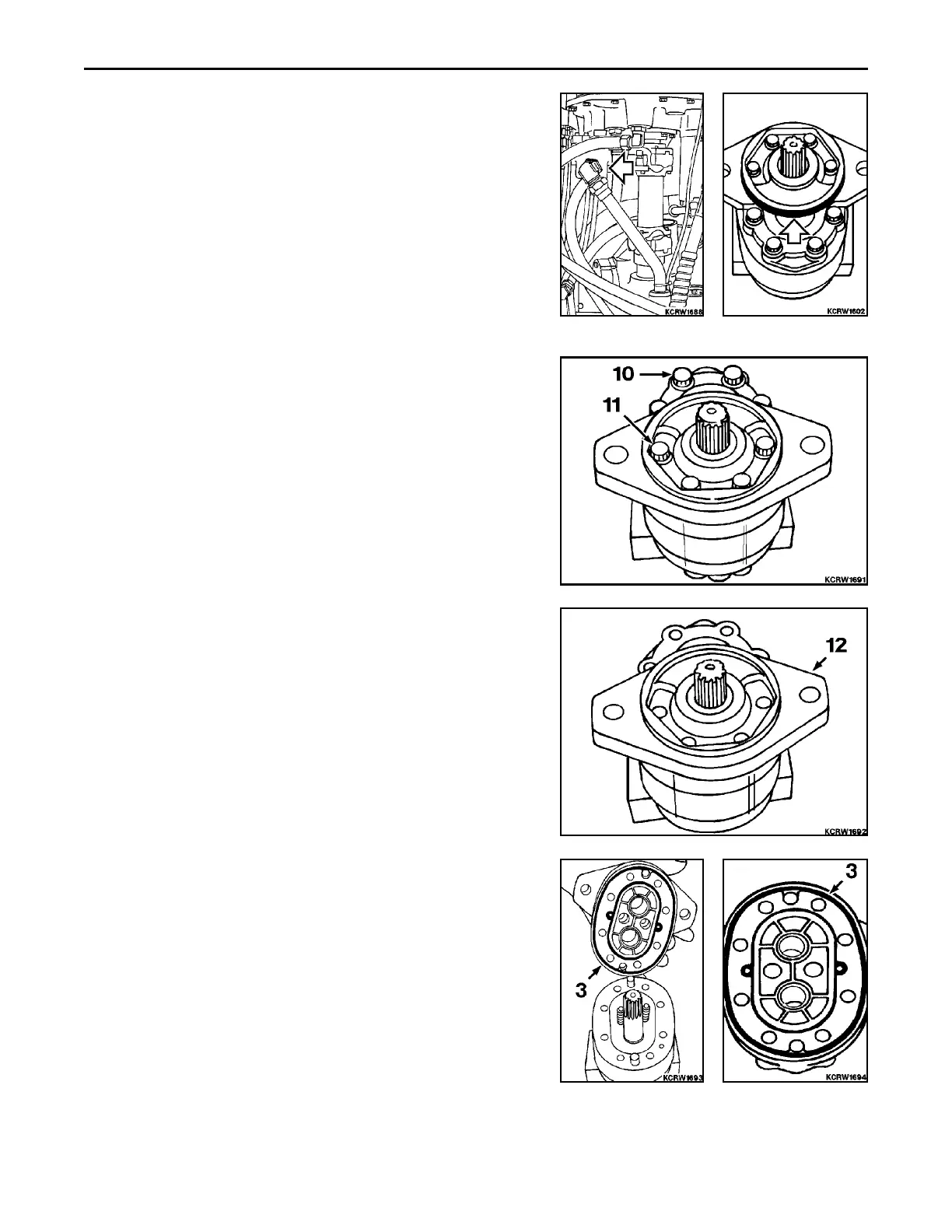

2. Thoroughly clean pump before disassembly. Match mark
sections of pump as shown. Remove mounting bolts (10 and
11).
3. Tap on front plate (12) to loosen from dowel pins.
4. Remove front plate (12) from assembly.
5. Remove section o-ring (3) from front plate.
