14 - 72
TRACK FRAME ALIGNMENT

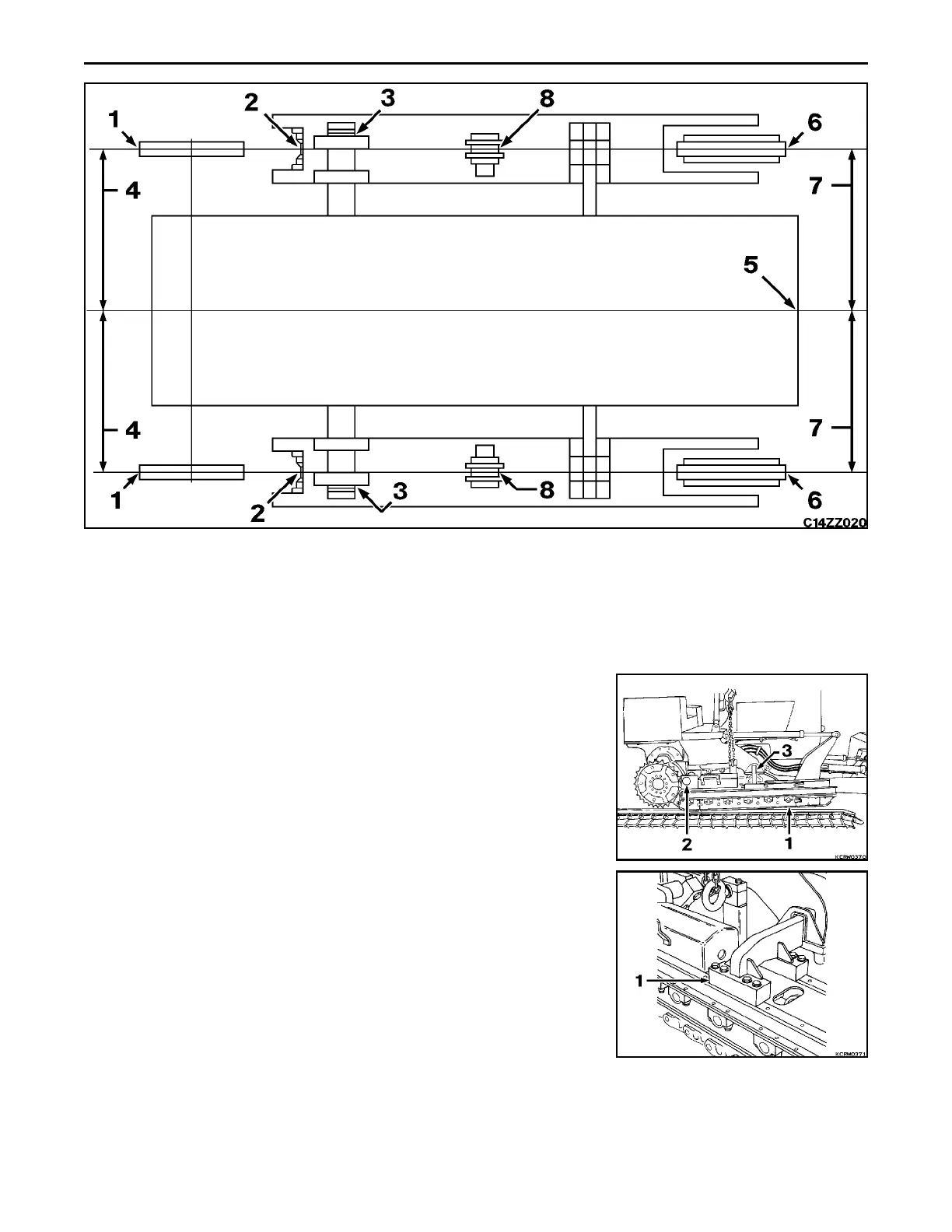

UNDERCARRIAGE TRACK FRAME ALIGNMENT
1. Centerline of Sprocket 5. Front Centerline of Machine
2. Centerline of Rear Roller to Sprocket 6. Centerline of Front Idler
3. Required Shims and Lock Bar 7. Centerline of Machine to Front Idler
4. Centerline of Machine to Sprocket 8. Center of Top Idler To Sprocket and Front Idler
1. Position track frame (1) on rear rigid bar (2) and move into place under
front cross bar (3).
2. Attach track frame to front crossbar (1) with hardware in a loose
condition.
