TRANSMISSION RANGE SELECTOR VALVE
7C - 96

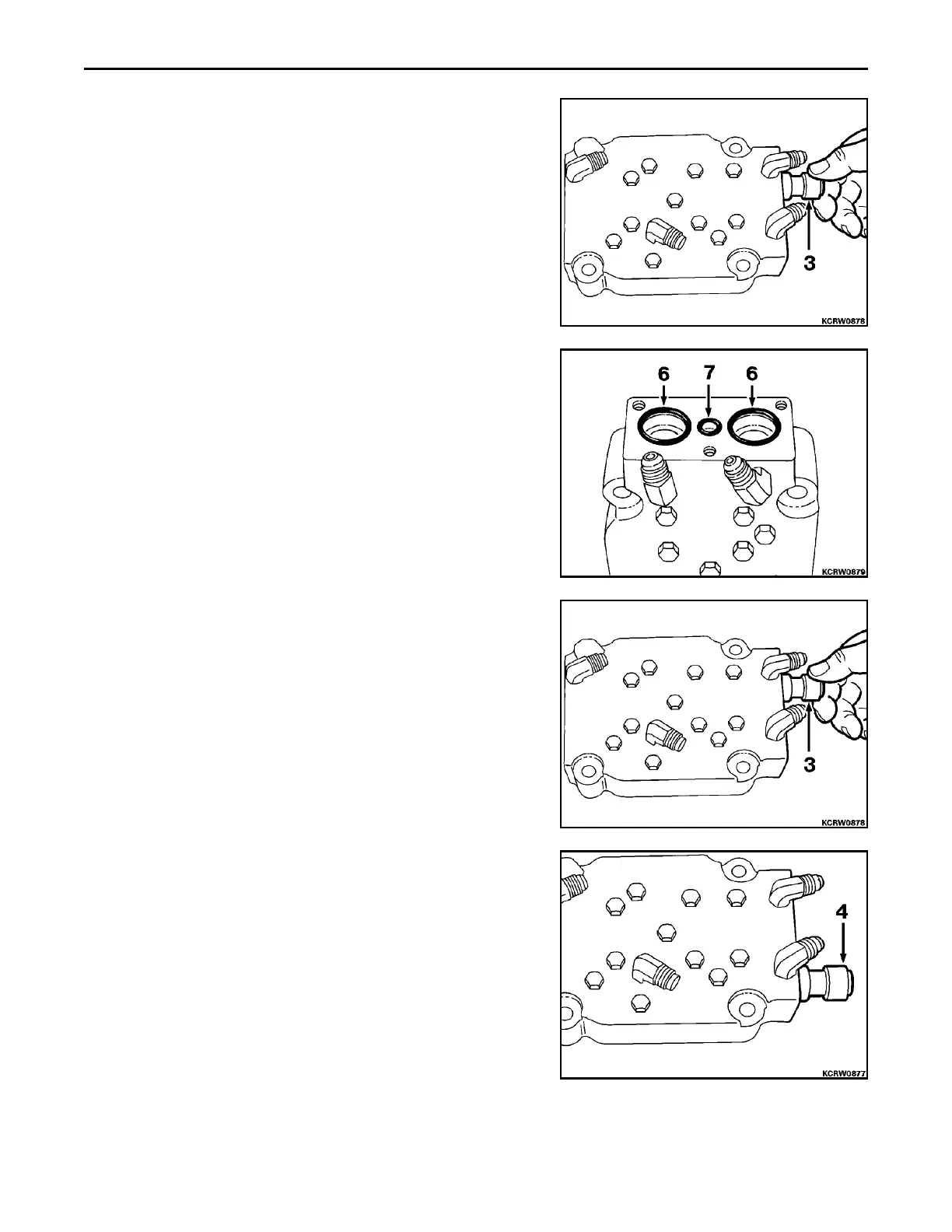

8. Remove remaining speed spool (3) from housing bore.
REMARK
Spool is to be kept with housing bore side that it was removed
from.
9. Remove large (6) and small (7) o-rings from each end of
housing. Discard o-rings and replace with new.
REASSEMBLY
REMARK
Callouts from exploded and cross section views correspond with
callouts in following steps.
1. Coat new large (6) and small (7) o-rings with amber grease and
install in counter bores in each end of housing.
2. Install speed spool (3) into its housing bore.
3. Install long directional spool (4) into its housing bore.
