REMOVAL CONTROL VALVE
10B - 3

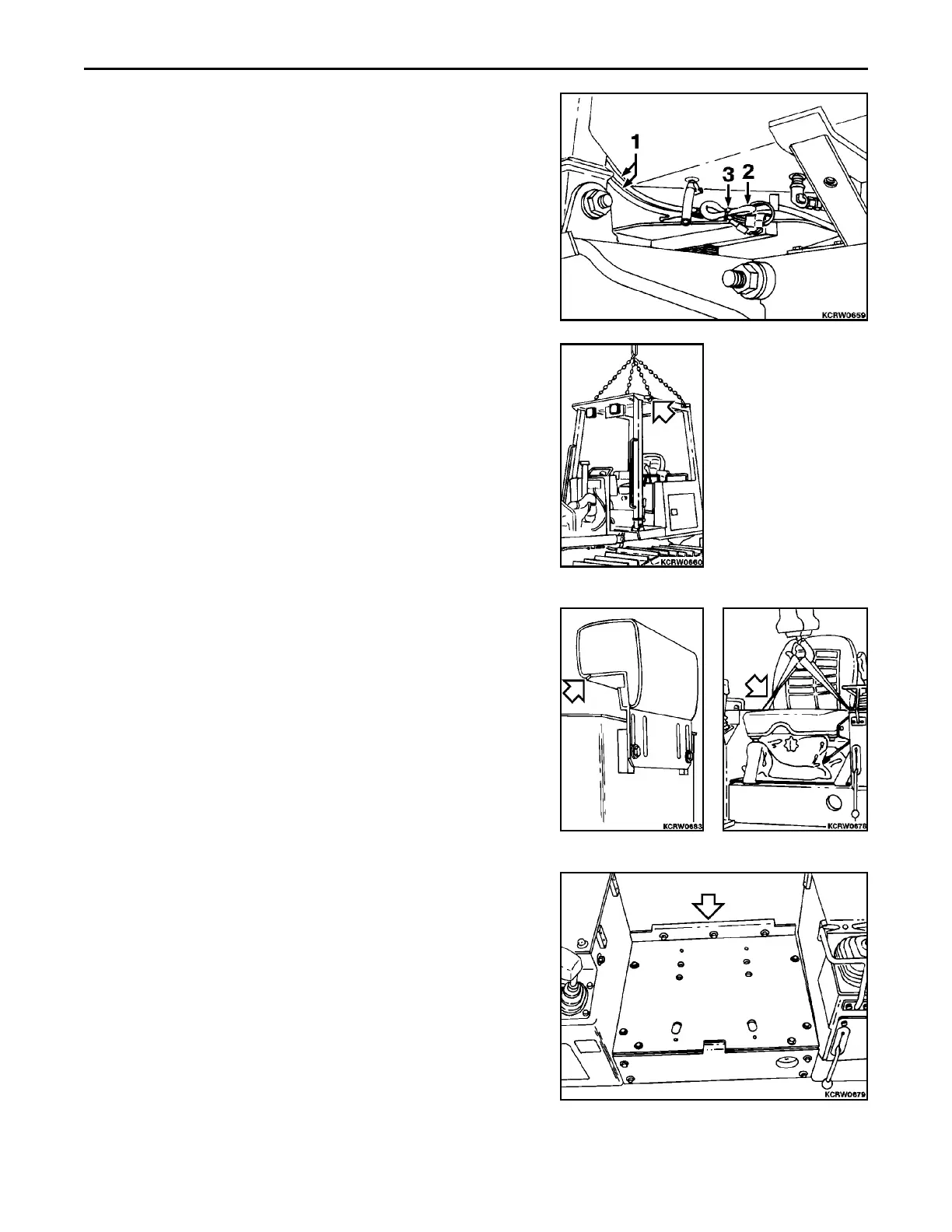

6. Disconnect front and rear light harness (1) from main harness
(2). Cut tie strap (3) and remove from clip.
7. Attach four leg chain and hoist to ROPS lifting brackets.
Remove mounting hardware and lift ROPS from machine.
REMARK
For a machine equipped with a cab, see Section 13 for cab
removal.
8. Remove armrest and brackets from each side of machine.
9. Connect sling and hoist to seat. Remove front and rear hard-
ware and lift seat from machine.
10. Remove seat platform.
