FRONT CROSSBAR UNDERCARRIAGE
14 - 69

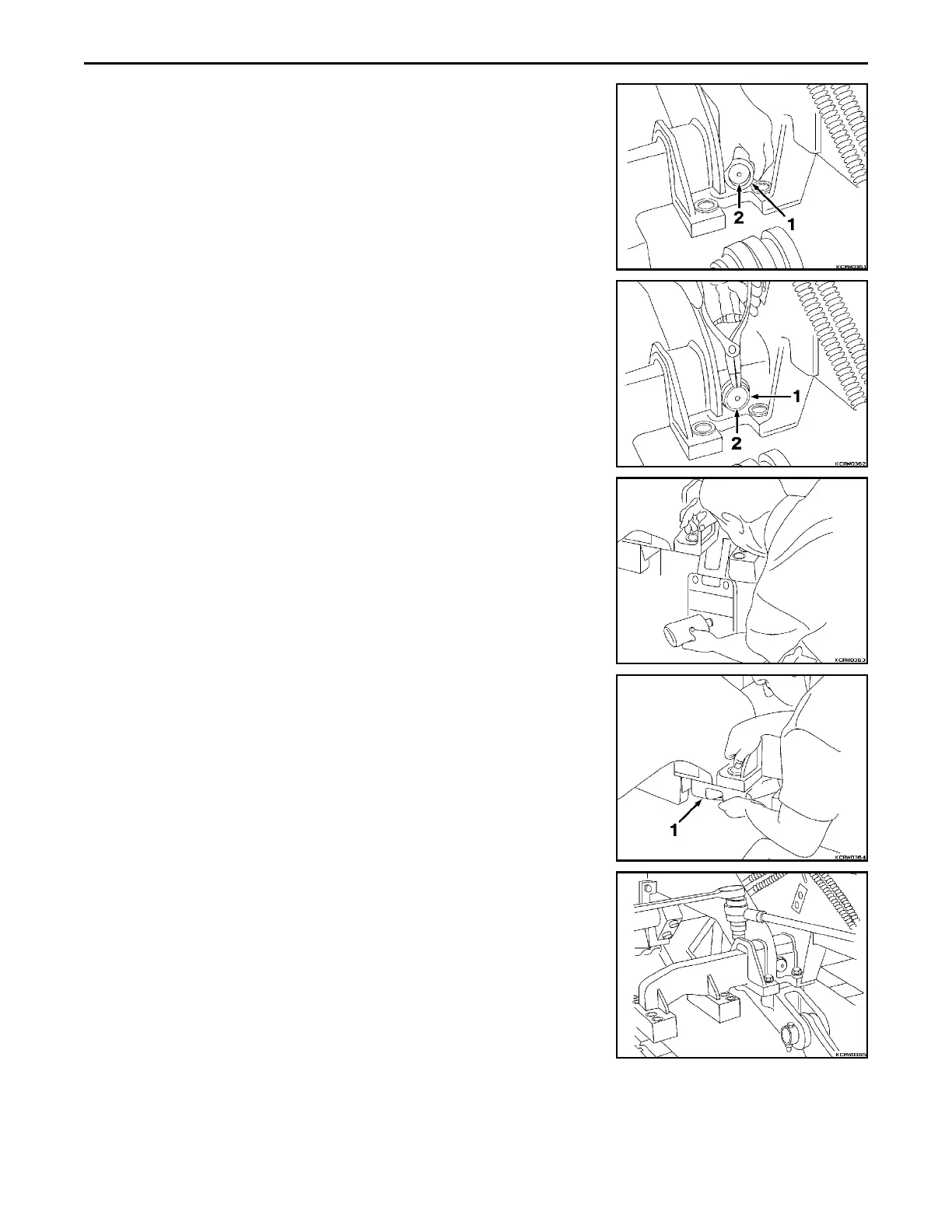

2. On each side of machine, install ring retainer (1) to mounting pin (2).
3. On each side of machine, install retaining ring (1) to mounting pin (2).
4. Each side of machine, apply Loctite Plastic Gasket or #568 to mounting
surfaces of C frame trunnions.
5. D32E-1 or D32P-1: Using hoist and slings lift C frame and connect
trunnion with hardware on each side of machine.
D38E-1, D38P-1, D39E-1 or D39P-1: On each side of machine, rotate
trunnion (1) in position and secure with hardware.
6. Torque bolts to 920 NCm (660 lbf ft).
