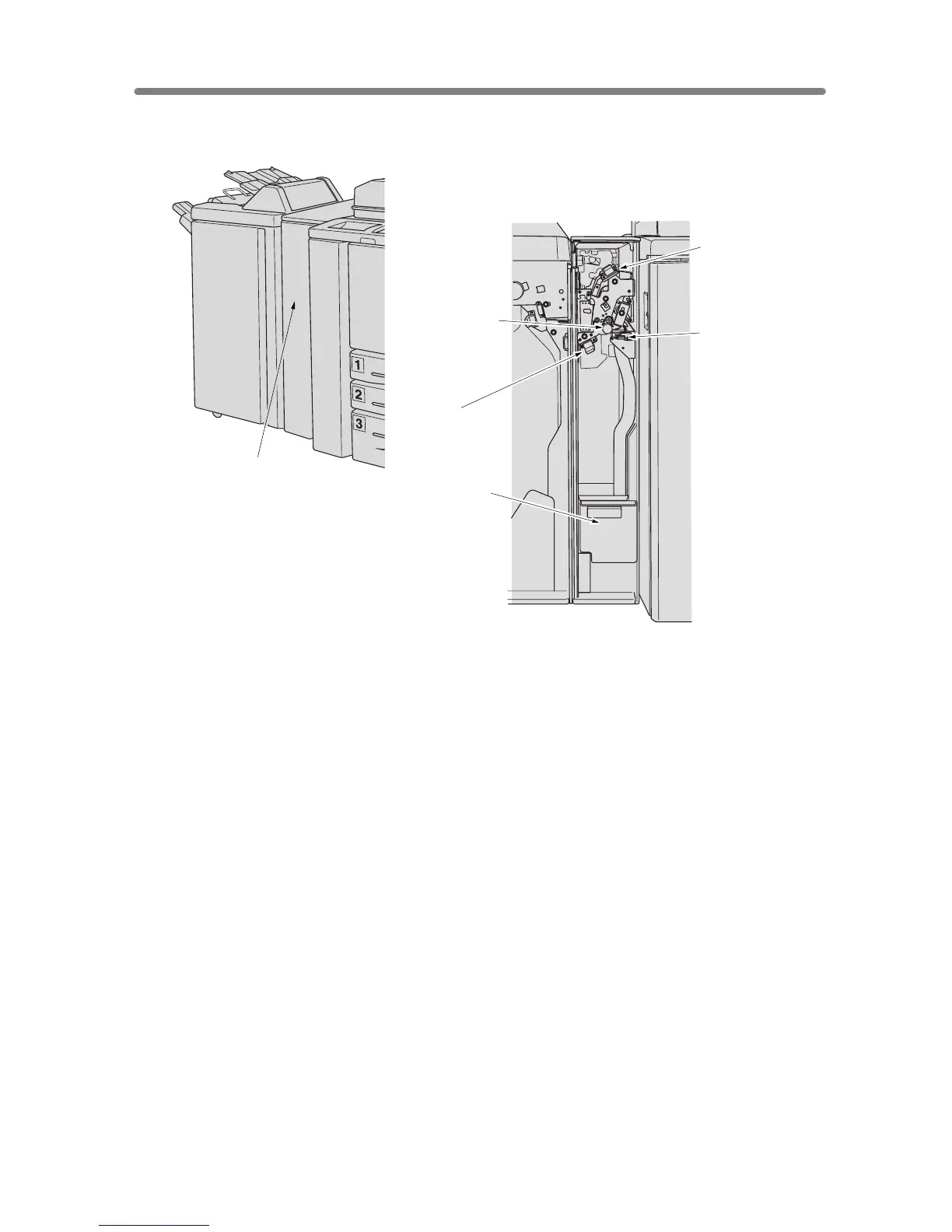

PU-108 Punching Unit
1 Punching unit front door opens to allow removal of mishandled paper or waste
paper.
2 Right lever opens to allow removal of mishandled paper.
3 Upper lever opens to allow removal of mishandled paper.
4 Knob can be turned to ease removal of mishandled paper.
5 Left lever opens to allow removal of mishandled paper.
6 Waste basket holds waste paper punched out.
1 Punching unit
front door
3 Upper lever
2 Right lever
4 Knob
5 Left lever
6 Waste basket
