Loading Paper (continued)
2-28
Loading Tabbed Sheets in Tray 1, 2, or 3
When TAB is displayed on the tray key of the Basic Screen, follow the procedure
below to supply the tray with tabbed sheets.
HINT
The tray paper type can be specified in the Key Operator setting. For
details, see p. 13-23 to p. 13-24.
Reminder!
The tab extension width should be 12.5mm or less.
1. Withdraw tray 1, 2, or 3.
2. Open the paper feed roller.
3. Place the tabbed sheets on the tray as illustrated above.
4. Move the green levers (located at the front and the left side) to the
edge of the paper.
5. Close the paper feed roller, then push in the tray until it locks into
place.

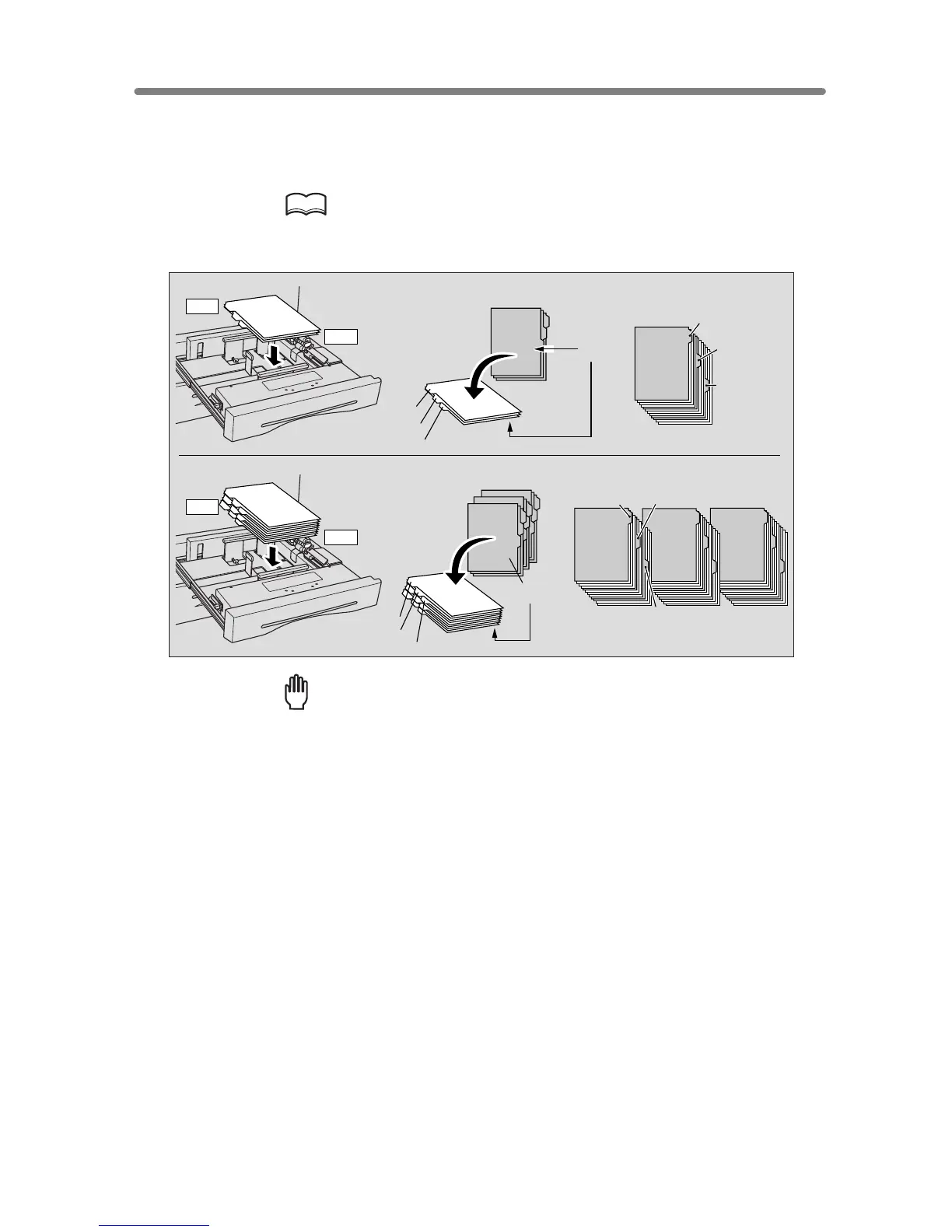

3 FINISHED SETS
ONE FINISHED SET
Example: 9 Tabbed sheets loaded in position for 3 finished sets.
Example: 3 Tabbed sheets loaded in position for one finished set.
Section 3
Management
3rd TAB
2nd TAB
1st TAB
Printed
side
Section 1
Introduction
Section 1
Introduction
Section 1
Introduction
1st TAB
2nd TAB
3rd TAB
2nd TAB
3rd TAB
Section 1
Introduction
1st TAB
Rear
Front
Rear
Front
Section 3
Management
Section 3
Management
Section 3
Management
Printed
side
3rd TABS
2nd TABS
1st TABS
To Next Page
