18

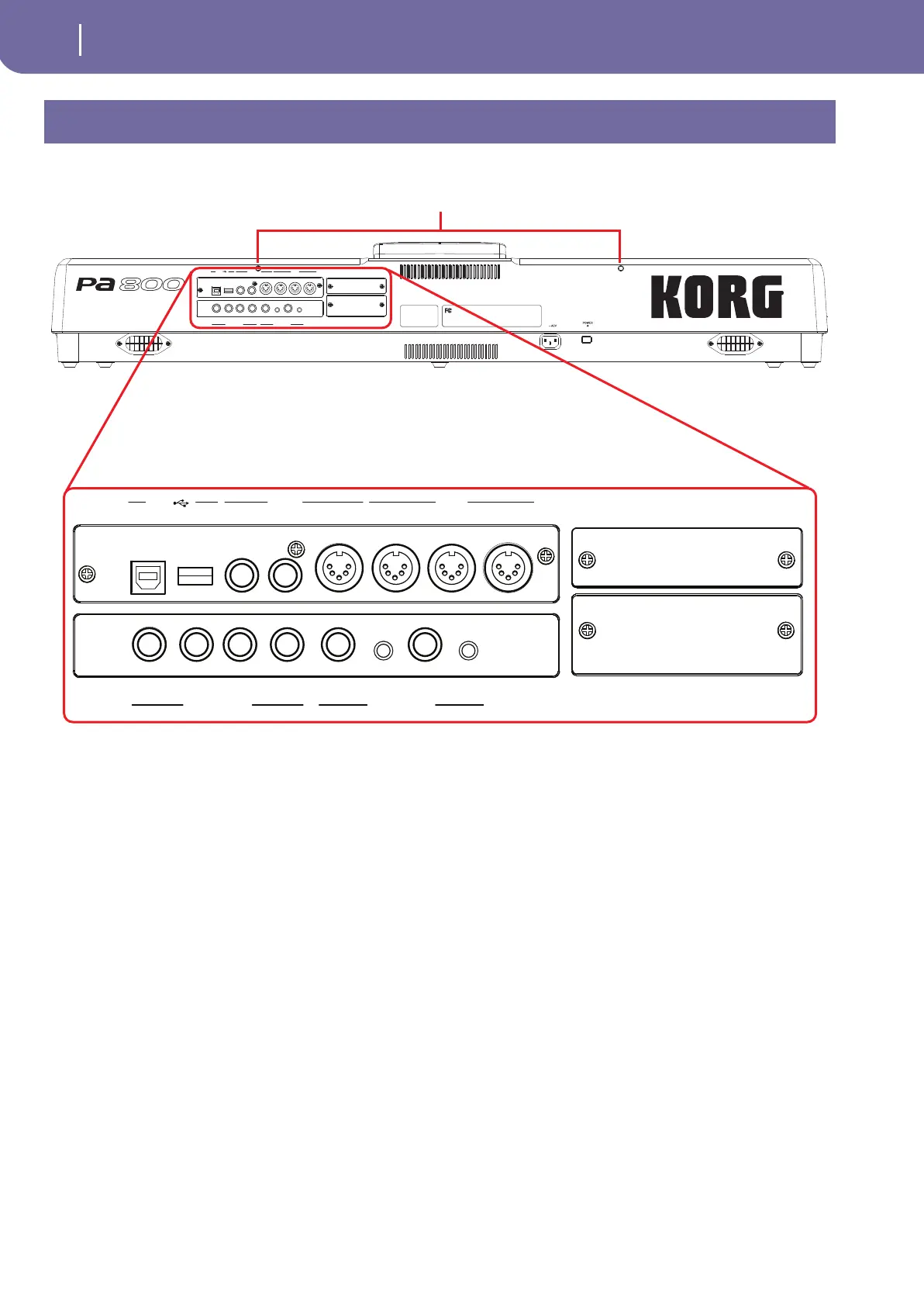

Rear panel
1 Music stand holes
A music stand comes standard with your Pa800. Insert its legs
into these two dedicated holes.
2 ACV cable connector
Plug the supplied AC cable into this connector.
3 POWER switch
Use this switch to turn the instrument on or off.
4 USB connectors
DEVICE This is a USB Type B (Slave/Device) connector,
USB 1.1 compliant (Full Speed). Use it to connect
the Pa800 to a personal computer, and transfer
data to/from its internal devices (SSD, hard disk
if fitted…). See “HD and SSD-U Connection” on
page 258 for more information.
MIDI Over USB is supported, so you can use this
connector instead of the MIDI ports (see “What
is MIDI Over USB?” on page 263).
HOST(R) This is a USB Type A (Master/Host) connector,
USB 2.0 compliant (High Speed). It duplicates
the USB connector located in the front panel. Use
it to connect to the Pa800 an USB Flash Memory
stick, an external CD-ROM drive, an USB hard
disk. To access the connected device, go to the
Media edit mode (see “Media edit mode” on
page 243).
5 PEDAL connectors
These connectors allow for connection of external pedals.
DAMPER Use this to connect a Damper pedal, like the Korg
PS1 or DS1H. To change its polarity and calibrate
it, see “Damper” on page 222.
ASSIGNABLE Use this port to connect a continuous- or foot-
switch-type pedal, like the Korg EXP2 or XVP10.
To program and calibrate it, see “Pedal/Foot-
switch” on page 222.
EC5 This connects to a Korg EC5 multiswitch, to con-
trol many functions in realtime. To program the
EC5, see “EC5-A…E” on page 223.
Rear panel
21
RIGHT
LEFT 2 1GAIN GAIN
AUDIO OUTPUT AUDIO INPUT
VIDEO OUT
DEVICE HOST (R) DAMPER
EC5
THRU
OUT
IN
ASSIGNABLE
MIDIPEDALUSB
FOR HOME OR OFFICE USE
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Complies with Canadian ICES-003 Class B.
Conforme au Règlement Canadien NMB-003 Classe B.
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DO NOT
EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Tes ted To Co mp ly
With FCC Standards
23
1
21
RIGHT
LEFT 2 1GAIN GAIN
AUDIO OUTPUT AUDIO INPUT
VIDEO OUT
DEVICE HOST (R) DAMPER
EC5
THRU
OUT
IN
ASSIGNABLE
MIDIPEDALUSB
45 6
78
0
9
