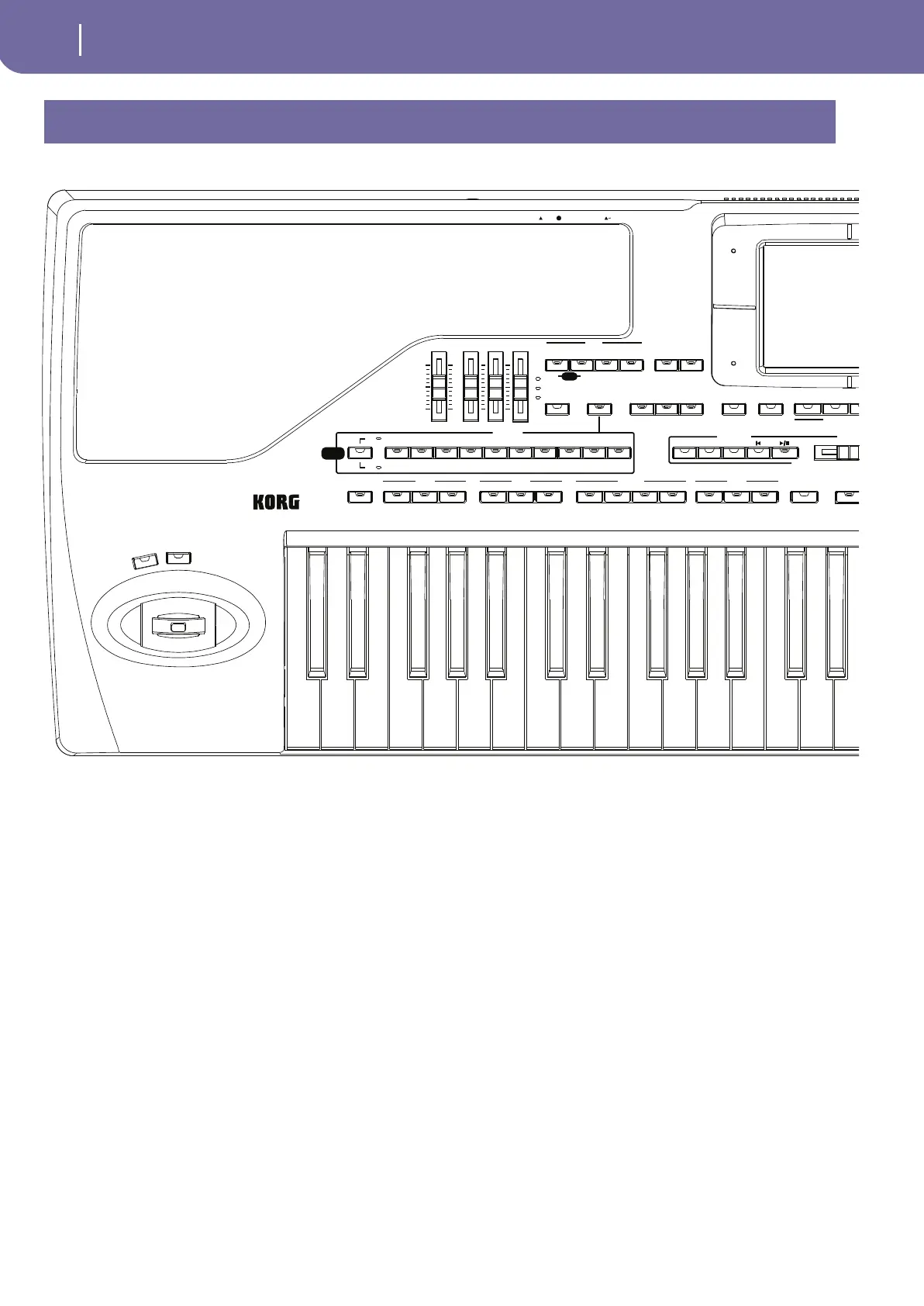

Front panel
1 JOYSTICK
This joystick triggers different functions, depending on the
direction it is moved towards.
X (+/–) Move the joystick towards the left (–) to lower the
pitch, or towards the right (+) to raise it. This is
also called Pitch Bend.
Y+ Move the joystick forward to trigger Modulation.
Y– Move the joystick backward, to trigger the func-
tion assigned in Sound mode.
2 ASSIGNABLE SWITCH
These are freely assignable switches (see “Pad/Switch: Assignable
Switch” on page 105 for information on how to assign functions
to them).
3 MASTER VOLUME
This slider controls the overall volume of the instrument, both
of the internal speakers, the LEFT/MONO and RIGHT outputs,
and the HEADPHONES output. It does not control the volume
of the 1 and 2 sub-outputs.
This slider also controls the volume of the microphone con-
nected to the AUDIO INPUT 1, when it is sent to the Voice Pro-
cessor. It does not control the signal entering the AUDIO
INPUTs (1 and 2) when they are directly sent to the outputs,
without entering the Voice Processor (see “Audio Setup: Audio
In” on page 228).
Warning: At the maximum level, with rich-sounding Songs, Styles
or Sounds, the internal speakers of Pa800 might distort during sig-
nal peaks. Should this happen, lower the Master Volume a little.
4 BALANCE
By default, this slider balances the volume of the Keyboard
tracks, against the Style (Accompaniment), Pad and Song tracks.
As an alternative, the slider can be used to control the Style/Song
Volume without affecting the Keyboard tracks (see “Balance
Slider” on page 221 for information on setting the slider’s behav-
ior).
This is a relative control, whose effective maximum level is
determined by the MASTER VOLUME slider position.
When moved, a magnified version of the virtual slider appears in
the display, for more accurate positioning.
Note: This slider only works in Style Play and Song Play mode; it
does not work in Sequencer mode.
Front panel
