95
Style Play operating mode
Mixer/Tuning: EQ Gain
Reference

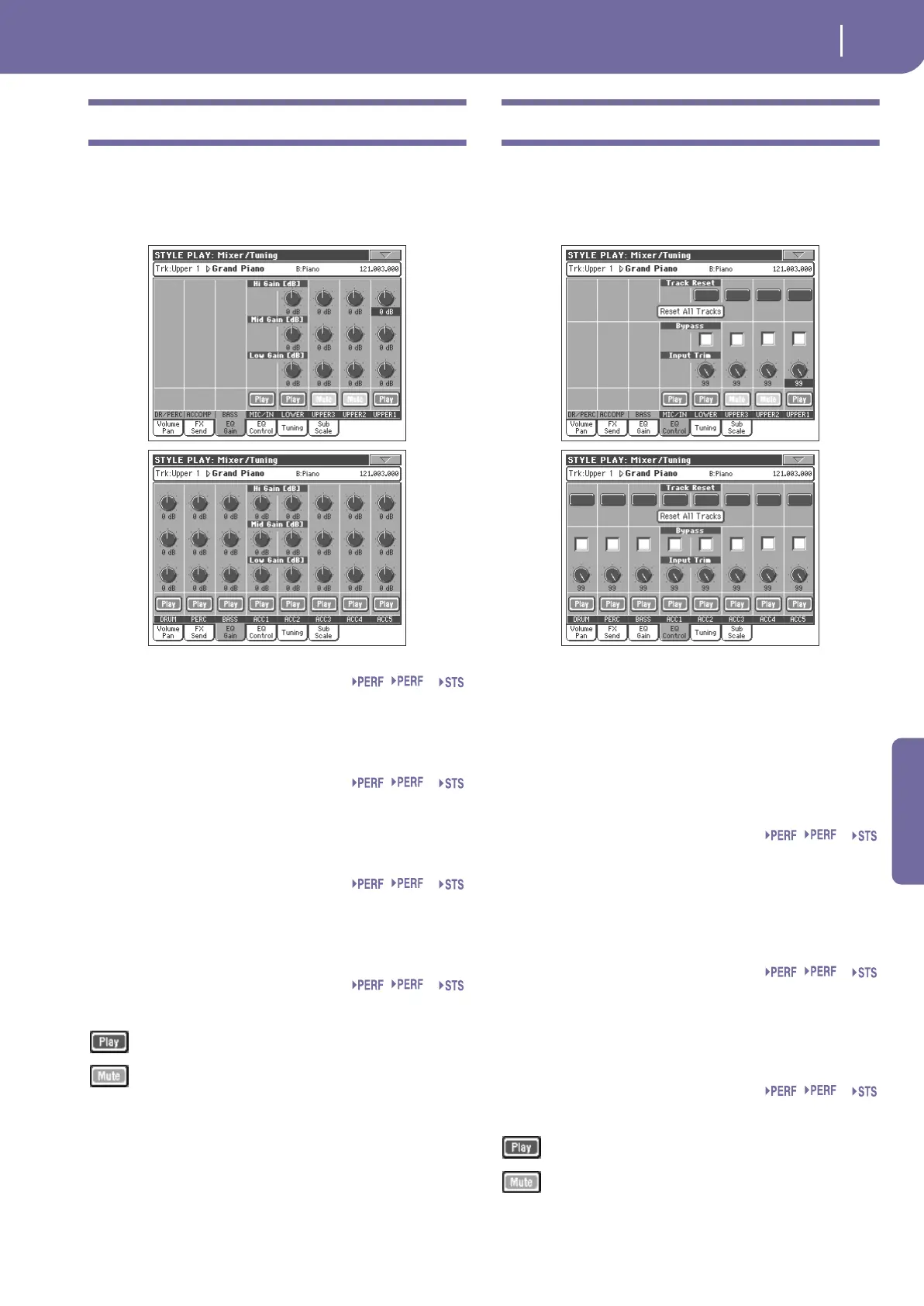

Mixer/Tuning: EQ Gain
In this page you can set the three-band equalization (EQ) for
each individual track.
Use the TRACK SELECT button to switch from the Keyboard to
the Style tracks, and vice-versa.
Hi (High) Gain
This parameter lets you adjust the high frequencies equalization
on each individual track. This is a shelving curve filter. Values are
shown in decibels (dB).
Mid (Middle) Gain
This parameter lets you adjust the middle frequencies equaliza-
tion on each individual track. This is a bell curve filter. Values are
shown in decibels (dB).
Low Gain
This parameter lets you adjust the low frequencies equalization
on each individual track. This is a shelving curve filter. Values are
shown in decibels (dB).
Play/Mute icon
Track’s play/mute status.
Play status. The track can be heard.
Mute status. The track cannot be heard.
Mixer/Tuning: EQ Control
This page lets you reset or bypass track equalization, pro-
grammed in the previous page.
Use the TRACK SELECT button to switch from the Keyboard to
the Style tracks, and vice-versa.
Track Reset buttons
Use these buttons to reset (i.e., “flatten”) equalization for the
corresponding track.
Reset All Tracks button
Touch this button to reset (i.e., “flatten”) equalization for all
tracks.
Bypass
Check any of these checkboxes to bypass equalization for the
corresponding track. When bypassed, equalization has no effect
on the track, but all parameters are preserved. When the box is
unchecked, equalization is activated again with the original set-
tings.
Input Trim
This knob allows you to limit the level of the signal passing
through the equalizer. Extreme equalization values can overload
the audio circuits and lead to distortion. This control lets you set
equalization as desired, and at the same time avoid overloading.
Play/Mute icon
Track’s play/mute status.
Play status. The track can be heard.
Mute status. The track cannot be heard.
Sty
Sty
Sty
Sty
Sty
Sty
Sty
