2G6
2-1-3
(2) Paper feeding mechanism

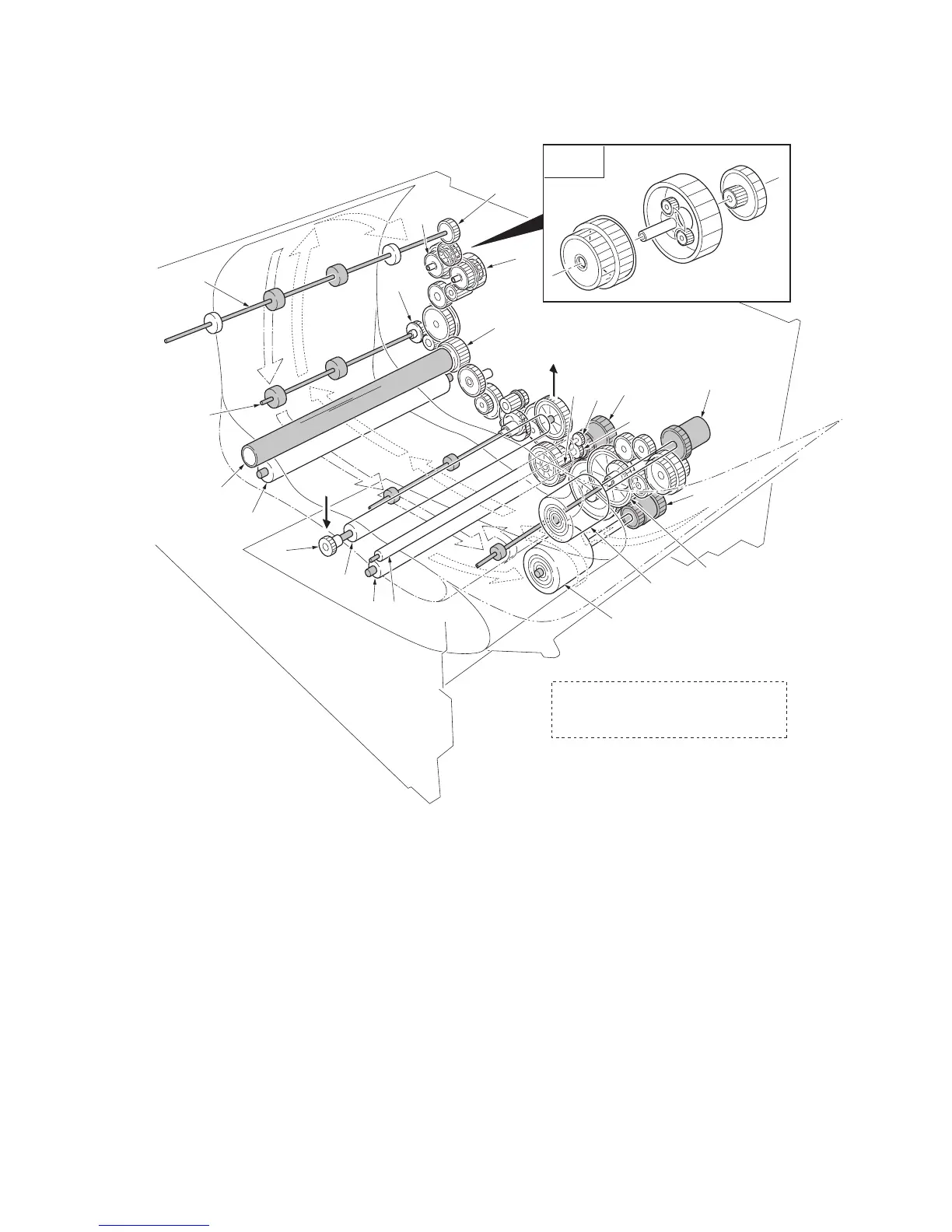

Figure 2-1-3 Paper feeding mechanism
(A) For process unit; drum (From main unit)
(B) From process unit; drum
(To transfer roller)
Driving power train
(B)
(A)
1. Main motor (gear)
2. Registration clutch
3. MP feed clutch
4. Feed clutch
5. MP feed roller
6. Feed roller
7. Registration gear Z13
8. Registration gear Z20
9. Gear Z95-Z21H
10. Lower registration roller
11. Upper registration roller
12. Transfer roller
13. TC gear Z18
14. Press roller
15. Heat roller
16. Heat gear Z33
17. Lower exit roller
18. Exit gear Z23
19. Upper exit roller
20. Exit gear Z23 UP
21. Planetary gear assembly A
22. Planetary gear assembly B
