1-3-2 Installing the expanding memory (option)
The main board of the printer is equipped with one
socket for memory expansion. Expansion memory is
available in the form of DIMM (Dual In-line Memory
Module).
CAUTION
Take precautions that no foreign substances such as
metal chips or liquid get inside the printer during the
installation process. Operation of the printer during the
presence of a foreign substance may lead to fire or
electric shock.
WARNING
Turn the printer's power switch off. Unplug the printer's
power cable.
Procedure
1. Remove the one screw and then remove the
memory cover.
2. Open the clips on both ends of the DIMM socket.
3. Insert the DIMM into the DIMM socket so that the
notches on the DIMM align with the corresponding
protrusions in the slot.
4. Close the clips on the DIMM slot to secure the
DIMM.

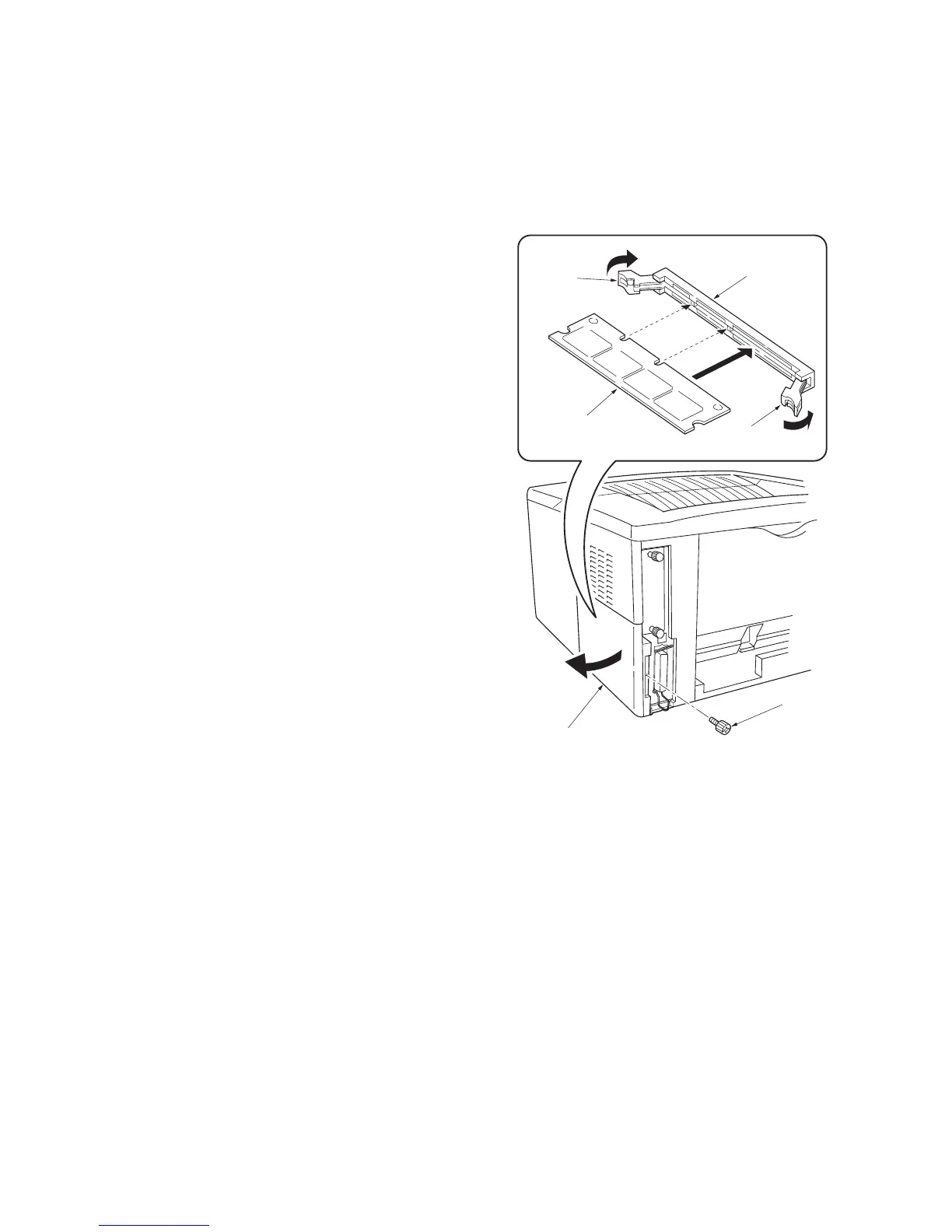

Figure 1-3-17 Inserting the DIMM
Memory cover
Screw
Memory socket
DIMM
Clip
Clip
