Kyocera FS-1030D

2G6
2-1-7
(1-1) Process unit mechanism

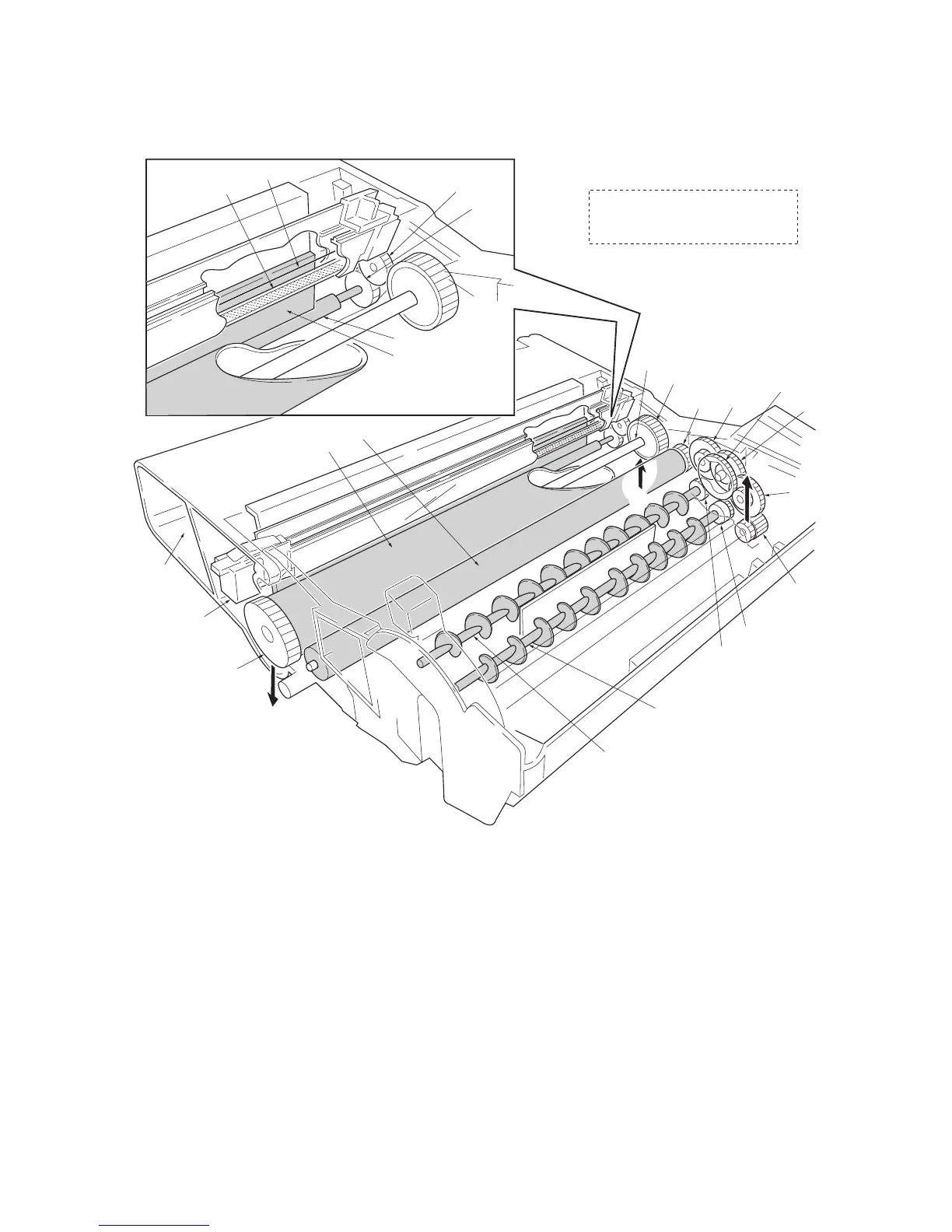

Figure 2-1-7 Process unit mechanism



















Driving power train
(A) For drum [From main unit]
(B) For main unit [Transfer roller]
(C) For toner container
(C)
(A)
(B)




1. Main charger unit
2. Charger wire
3. Grid
4. Developing roller
5. Gear Z14-Z18
6. Gear Z14-Z36
7. Gear Z18-Z36
8. Free gear Z40
9. Gear Z18-Z35H
10. MAG gear Z24H
11. Mixer gear Z20 B
12. Mixer gear Z20 A
12. DLP screw B
13. DLP screw A
14. Drum
15. Drum gear Z35H
16. Drum shaft
17. Drum gear Z36
18. Sweep gear Z13
19. Idle gear 18H
20. Cleaning blade
21. Sweep roller
22. Waste toner reservoir
