2G6
2-2-1
2-2-1 Electrical parts layout
(1) Electrical parts layout
1. Main PWB (K0011)
2. Engine PWB (K0010)
3. Power supply unit
4. High voltage unit
5. Bias PWB (K0009)
6. Toner sensor [PWB] (KP-1115)
7. Waste toner sensor [PWB] (KP-1115)
8. Eraser lamp [PWB] (A0050)
9. Registration sensor
10. Paper sensor
11. MP paper sensor
12. Exit sensor
13. Interlock switch
14. Cassette switch

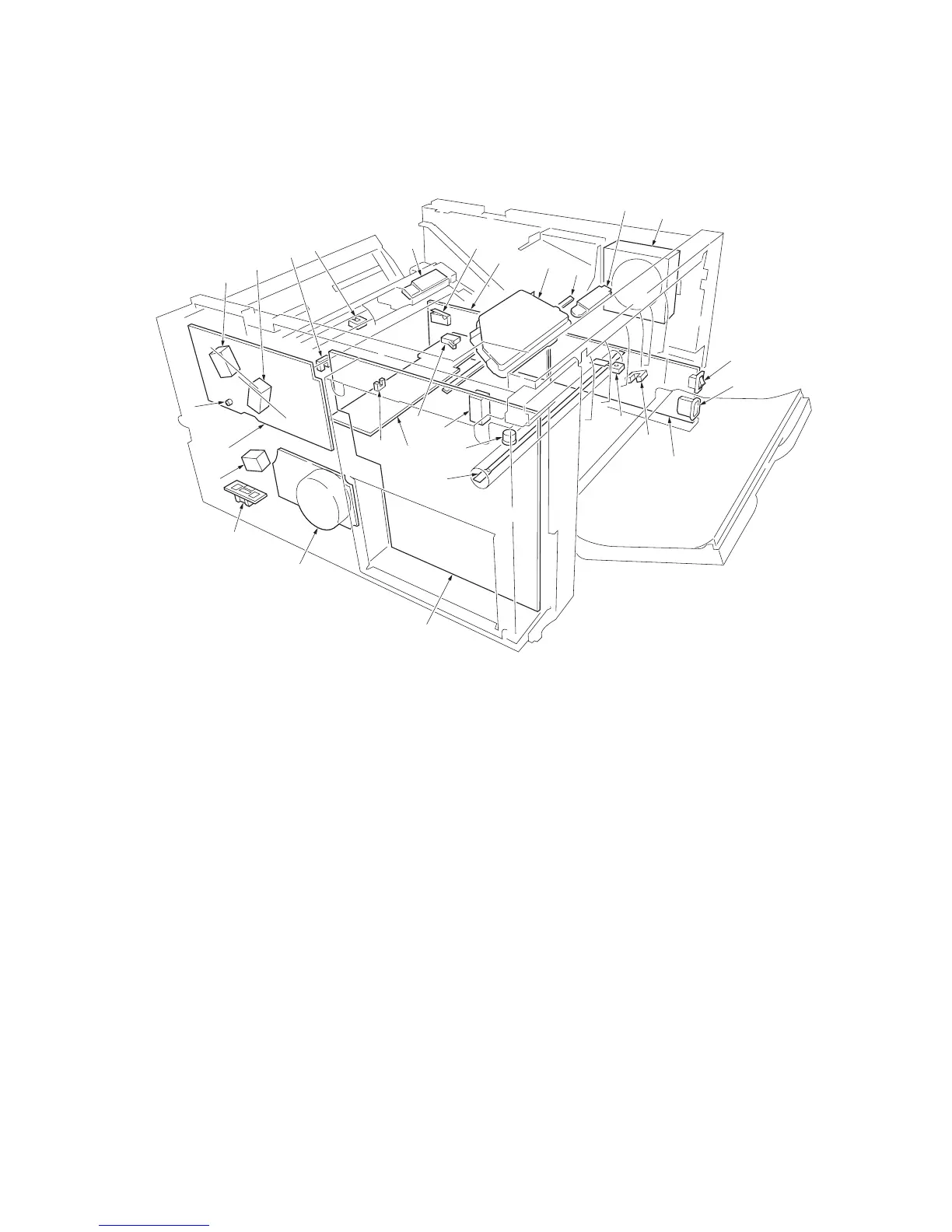

Figure 2-2-1 Electrical parts layout
15. Power switch
16. Temperature thermistor
17. Fuser thermistor
18. Thermal cutout
19. Main motor
20. Cooling fan
21. Registration solenoid
22. Feed solenoid
23. MP feed solenoid
24. Switchback solenoid
25. Laser scanner unit
26. Heater lamp
27. Paper feeder interface connector
28. AC Inlet
To Next Page
