(4) Removing the bias PWB
1. Remove the cassette and process unit (See page 1-6-2).
2. Remove the left cover (See page 1-6-4).
3. Remove the power supply unit and high voltage unit (See the previous page).
4. Turn the machine with the bottom side up.
5. Remove the one stop ring and then remove the DU holder.
6. Remove one stopper bush and then remove the DU cover A and B.

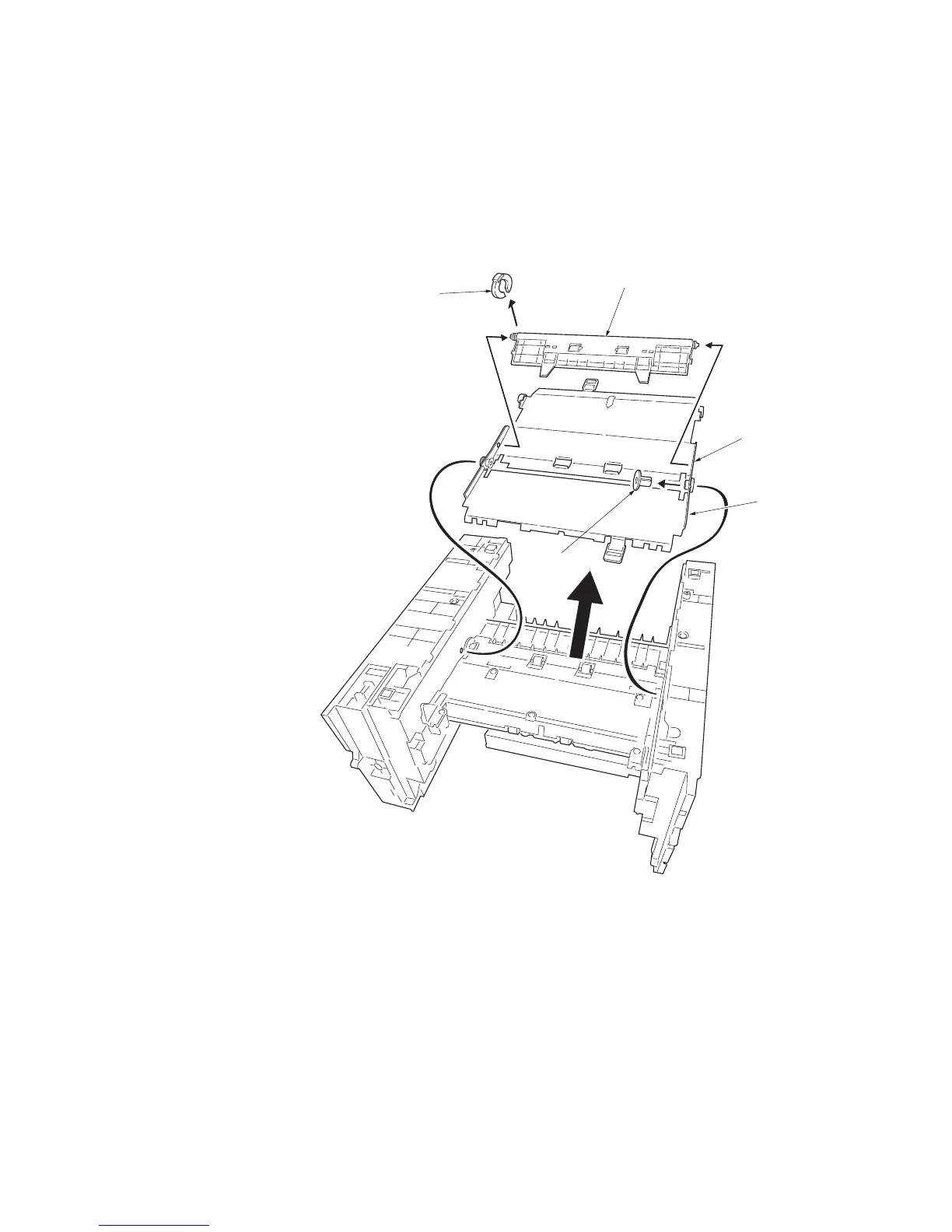

Figure 1-6-14 Removing the DU cover A and B
Stop ring
DU holder
Stopper bush
DU cover A
DU cover B
