7. Remove five screws.
8. Remove the bottom cover.
9. Remove the three connectors from the bias PWB.
10. Remove the bias PWB.

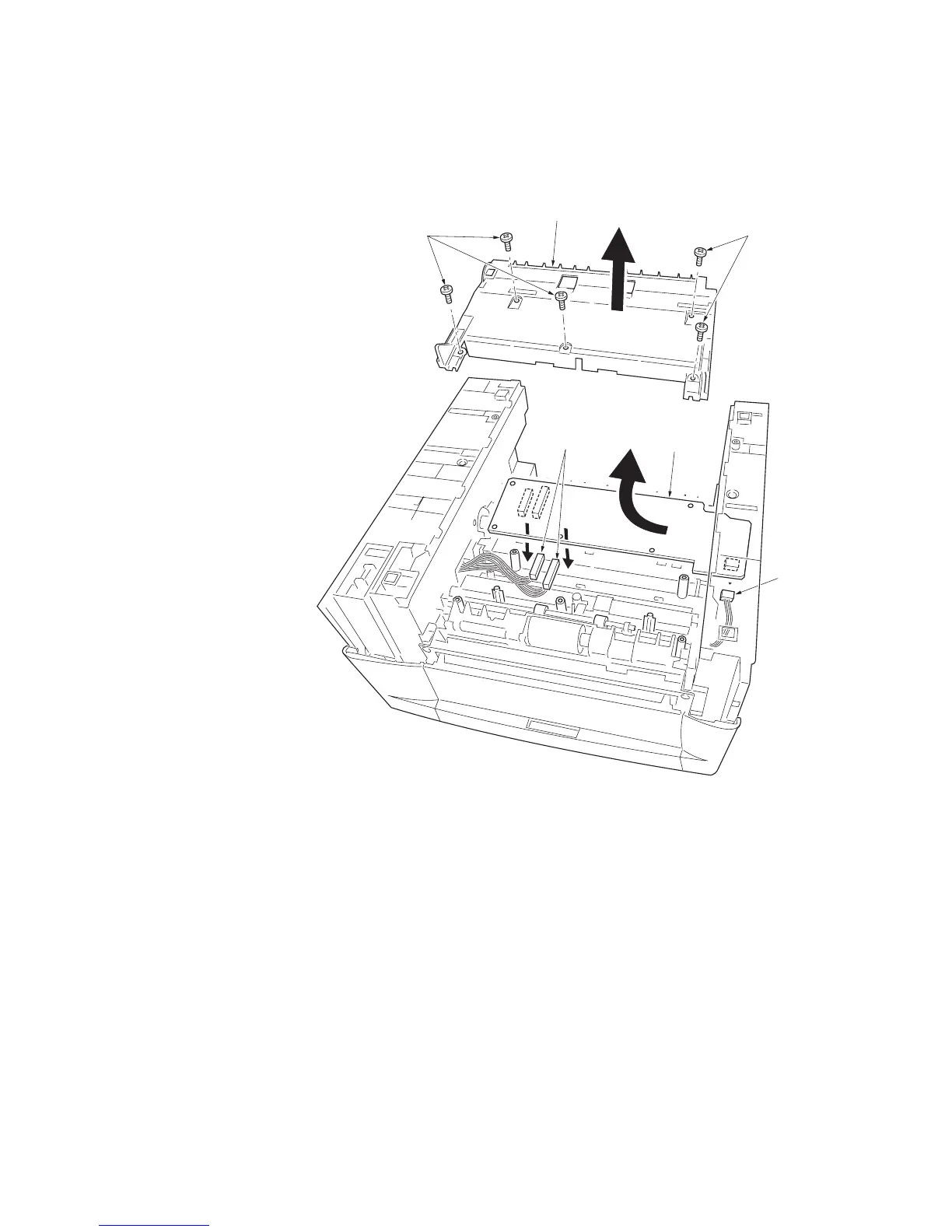

Figure 1-6-15 Removing the bias PWB
Connectors
Connecto
r
Bottom cover
Bias PWB
Screws
Screws
