1-6-7 Removing the principal PWBs
(1) Removing the engine PWB
1. Remove the right cover (See page 1-6-4).
2. Remove all (twelve) connectors from the engine PWB.
3. Remove three screws.
4. Remove the engine PWB.
* When replacing the PWB with a new PWB,
remove the EEPROM (U2) from the old PWB
and mount it to the new PWB.

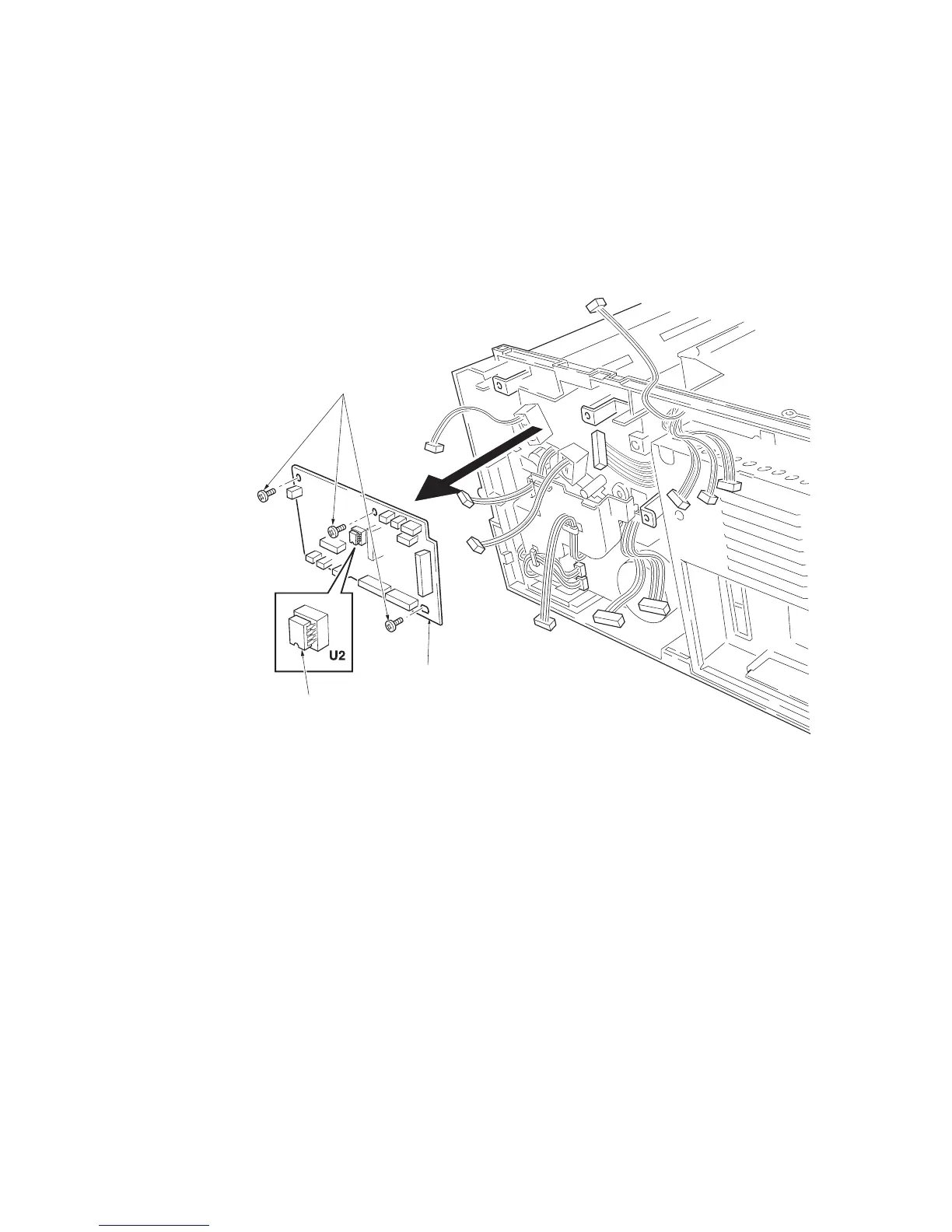

Figure 1-6-10 Removing the engine PWB
EEPROM
Engine PWB
Screws
