(2) Removing the right cover
1. Remove one screw.
2. Remove the side cover.
3. Unlatch the six snaps and one hook hole on
the chassis, remove the right cover.

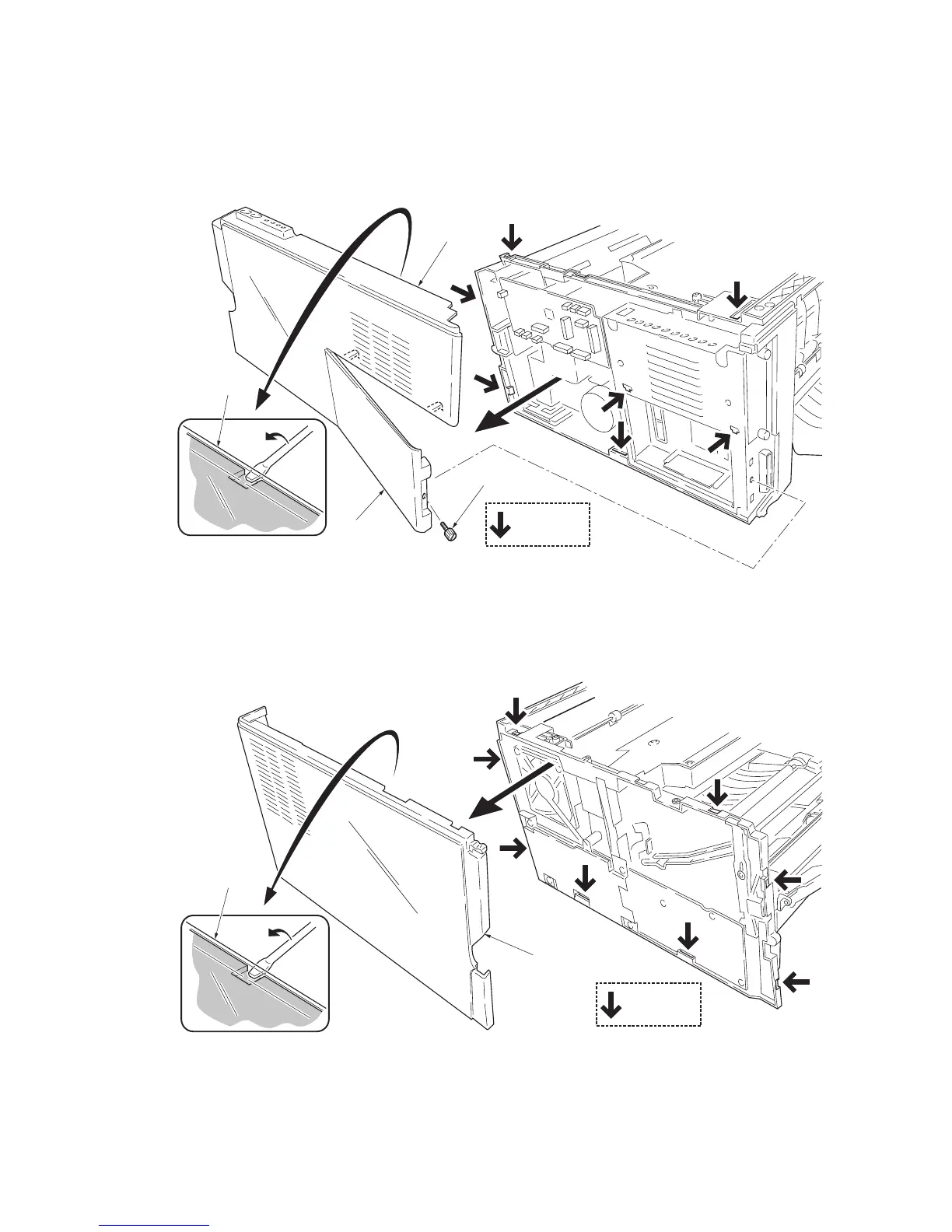

Figure 5-2-3 Removing the right cover
(3) Removing the left cover
1. Unlatch the six snaps and two hook holes on
the chassis, remove the left cover.
Figure 1-6-4 Removing the left cover
Left cover
Left cover
Snap/Hook
(inside cover)
Right cover
Side cover
Screw
Snap/Hook
(inside cover)
Right cover
