1-6-5 Removing the MP feed roller
1. Remove the engine PWB (See page 1-6-9).
2. Remove wires from the wire saddles.
3. Remove one screw and then remove the
cord cover.
4. Remove the one screw.
5. Remove the grounding plate.
6. Remove one stop ring.
7. Remove the MP feed clutch.

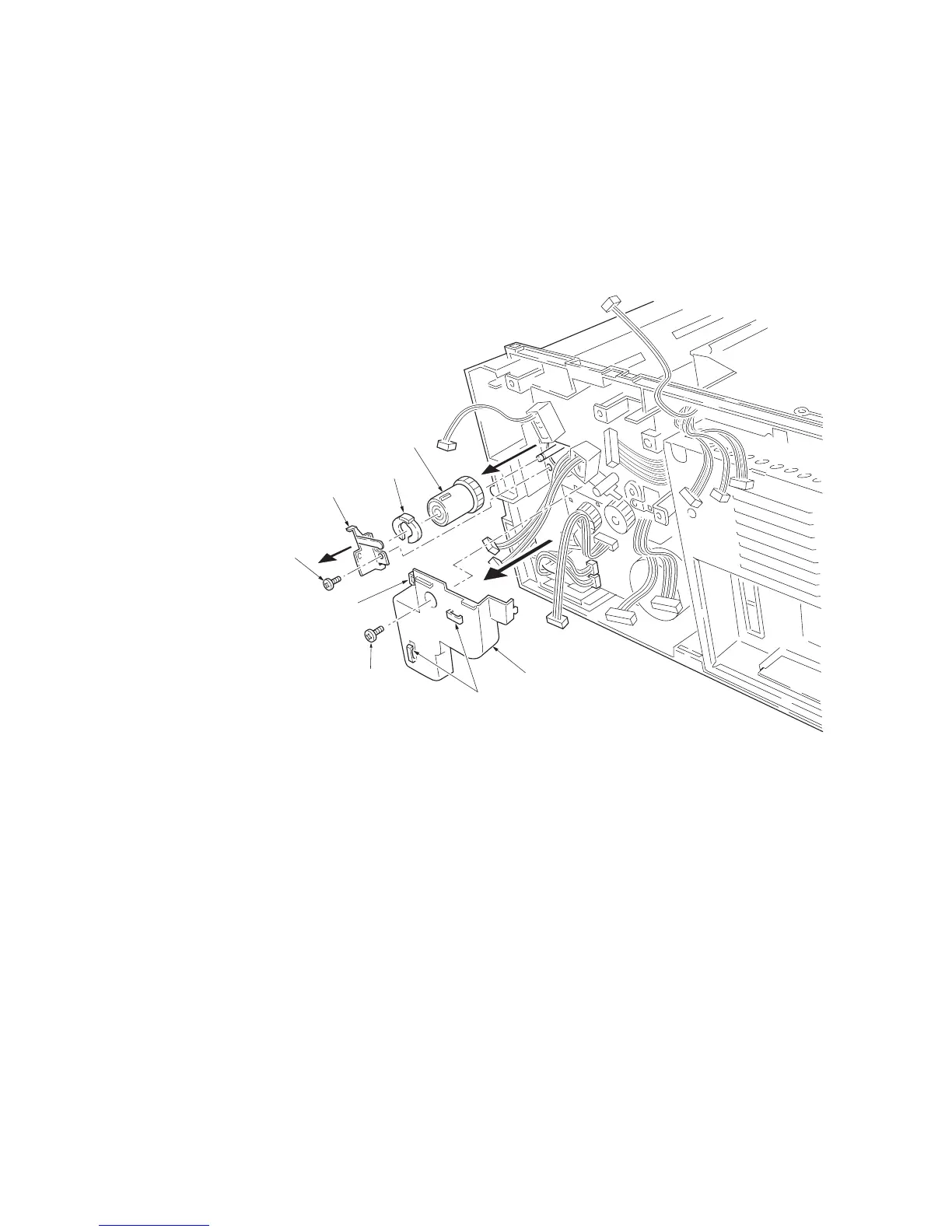

Figure 1-6-6 Removing the MP feed clutch
Grounding plate
MP feed clutch
Screw
Wire saddles
Wire saddle
Stop ring
Grounding plate
Screw
Cord cover
