Kyocera FS-1030D

2G6
2-3-2
2-3-2 Engine PWB

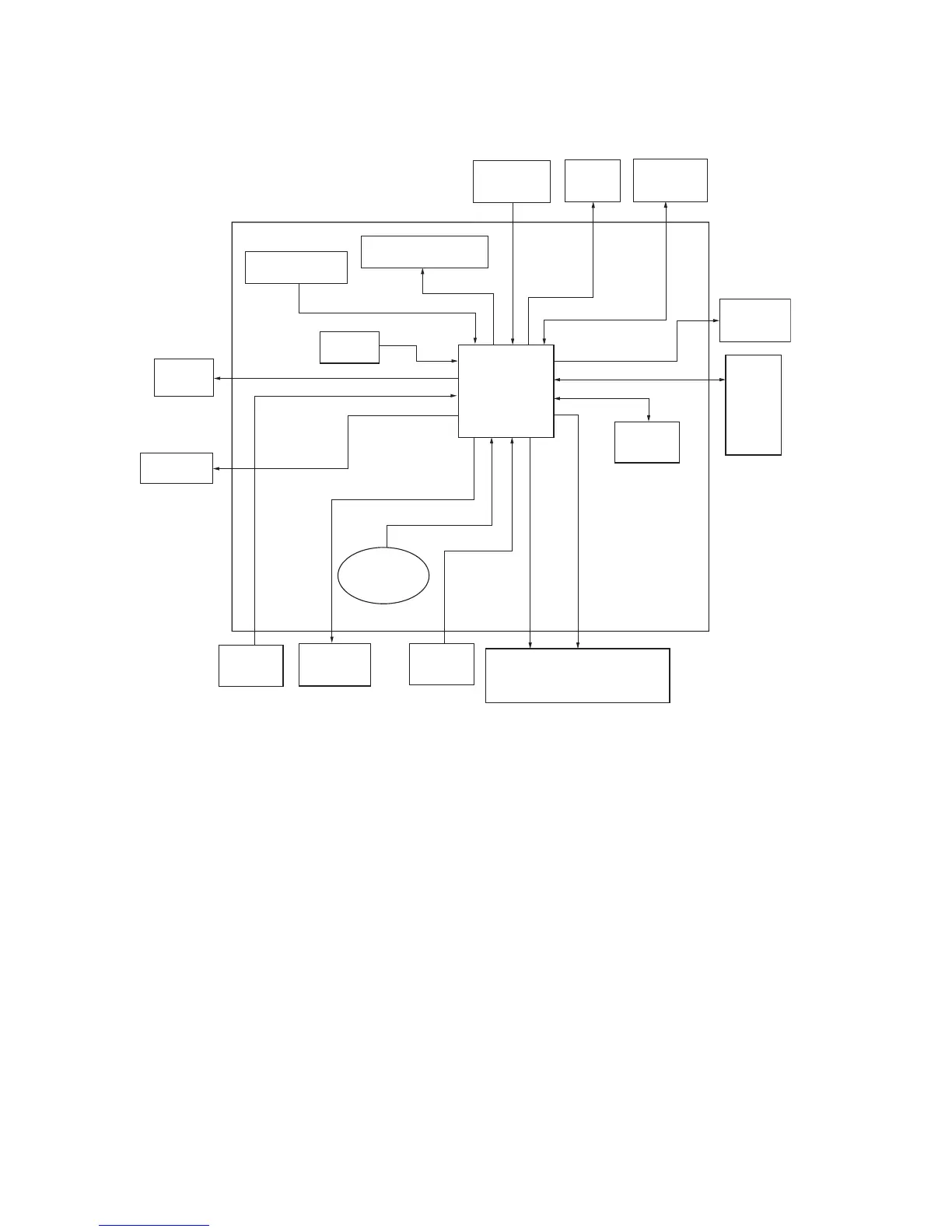

Figure 2-3-2 Engine PWB circuit block diagram
LED indicators
(DL1, DL2, DL3, DL4
Main
PWB
Switchback
solenoid
Waste
toner
sensor
Eraser
lamp
LSU
Registration
solenoid
MP feed
solenoid
EEPROM
(U2)
Bias PWB
Main motor
Temperature
thermistor
(TH1)
Reset IC
(U5)
Engine PWB
Paper
sensor
MP paper
sensor
CPU
(U1)
Key switches
(SW1, SW2)
