Kyocera FS-1030D Service Manual

2G6
1-6-27
(6) Removing the press roller
WARNING
The press roller is extremely hot immediately after the printer was running. Allow substantial period of time until it cools
down.
1. Remove and split the fuser unit (See page 1-6-19).
2. Remove the press roller from the fuser unit.
Press roller
Fuser unit

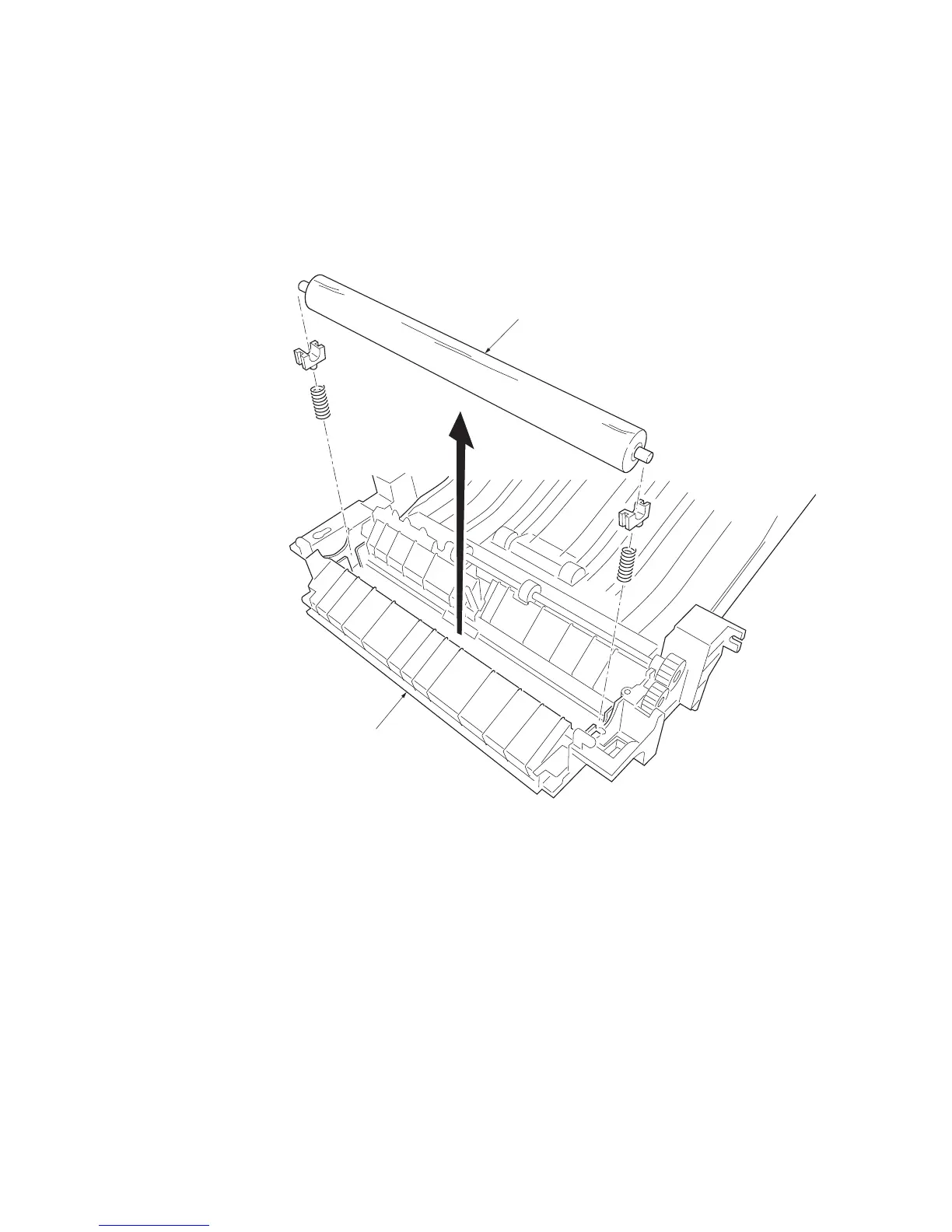

Figure 1-6-28 Removing the press roller

Kyocera FS-1030D Specifications

General

Processor model	PowerPC 405
Built-in processor	Yes
Maximum internal memory	288 MB
Sound power level (standby)	28 dB
Sound pressure level (printing)	53 dB
Color	No
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	22 ppm
Maximum print size	210 x 297 mm
Media weight (tray 1)	60-105 g/m2
Maximum ISO A-series paper size	A4
Memory upgrade	Yes GB
Custom media sizes	(148 x 210mm) - (216 x 356mm)
Power requirements	220 - 240V, 50/60Hz
Standard media sizes	A4, A5, B5, Letter, Legal
Total output capacity	250 sheets
Maximum input capacity	550 sheets
Paper tray 2 input capacity	50 sheets
Maximum duty cycle	20000 pages per month
Number of print cartridges	1
Power consumption (standby)	8.4 W
Power consumption (printing)	370 W
Power consumption (PowerSave)	4.3 W
Certification	TÜV/GS, CE, PTS

Weight and Dimensions

Dimensions (WxDxH)	378 x 375 x 235 mm
