Kyocera FS-1030D

2G6
1-6-31
(A)
Snap
Snaps
Main charger cap
(B)
(C)
Main charger
unit
Main charger unit
Terminal
1-6-11 Removing the main charger unit
1. Remove the process unit from the printer (See page 1-6-2).
2. Unlatch the three snaps, and remove the main charger cap.
3. Draw the main charger unit in the direction of arrow (A), then pull it out in the direction of arrow (B).

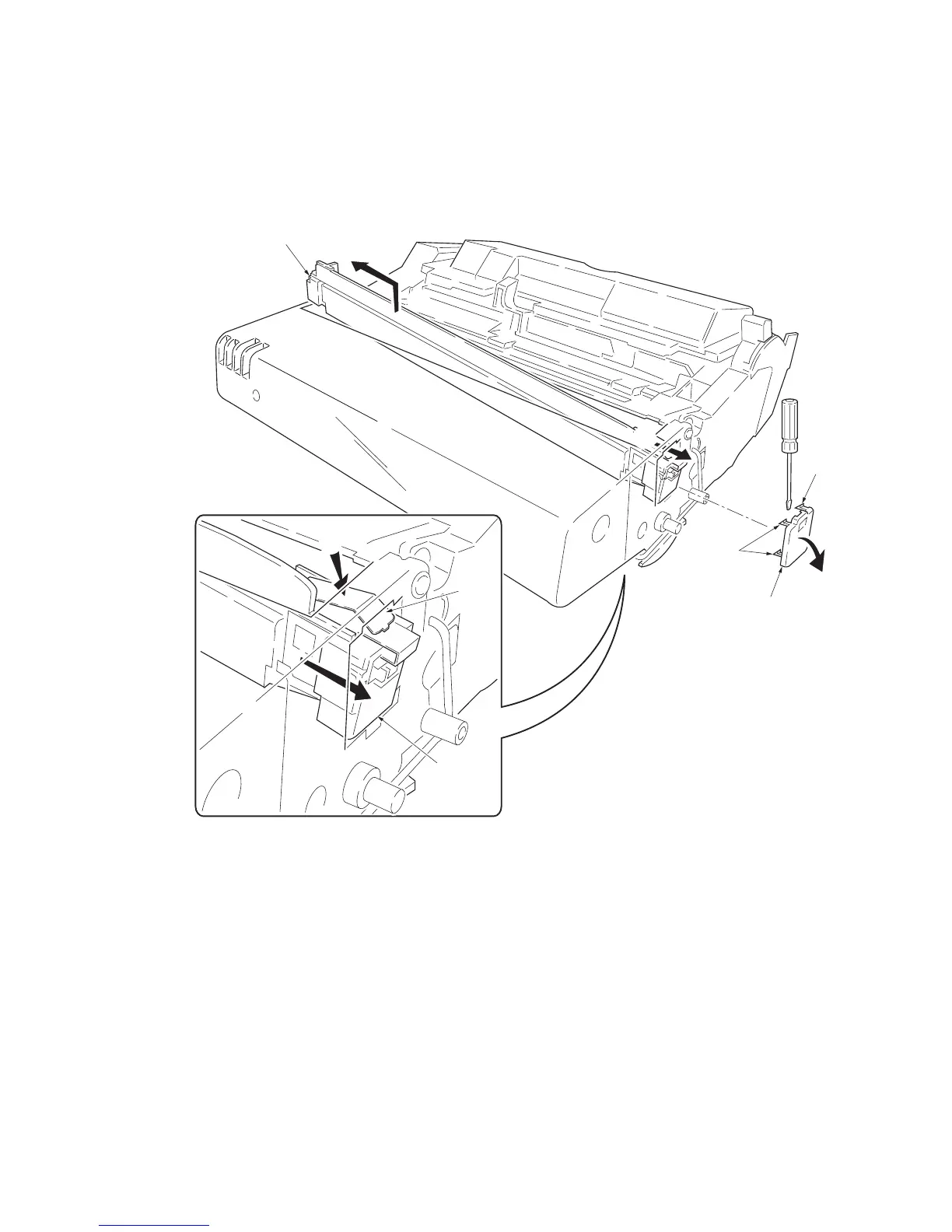

Figure 1-6-32 Removing the main charger unit
CAUTION
When refitting the main charger unit, hold terminal down (C), then push frontwards. Use care not to deform the terminal.
