(3) Removing the heat roller
WARNING
The heat roller is extremely hot immediately after the printer was running. Allow substantial period of time until it cools
down.
1. Remove and split the fuser unit (See page 1-6-19).
2. Remove the heater lamp (See previous page).
3. Press the lamp A holder away from the heat roller. Pull up both heat R bush and heat L bush at the same time.

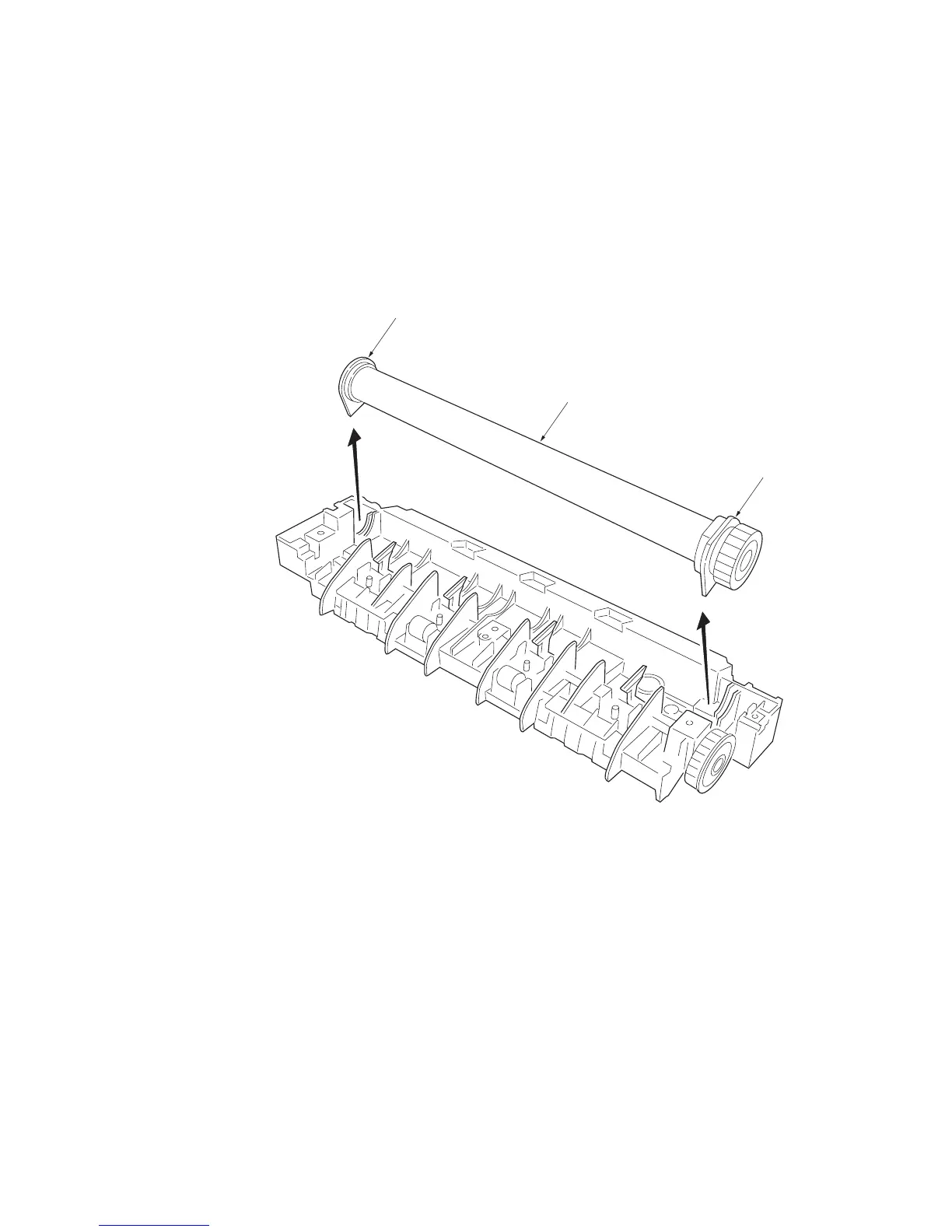

Figure 1-6-24 Removing the heat R bush and heat L bush
Heat L bush
Heat roller
Heat R bush
To Next Page
