Kyocera FS-1030D - Removing the Main Motor and Drive Unit

2G6
1-6-15
Main motor
Screws
Screws
Connectors
1-6-8 Removing the main motor and drive unit
1. Remove the cassette and process unit (See page 1-6-2).
2. Remove the right cover (See page 1-6-4).
3. Remove three connectors from the main motor.
4. Remove four screws.
5. Remove main motor.

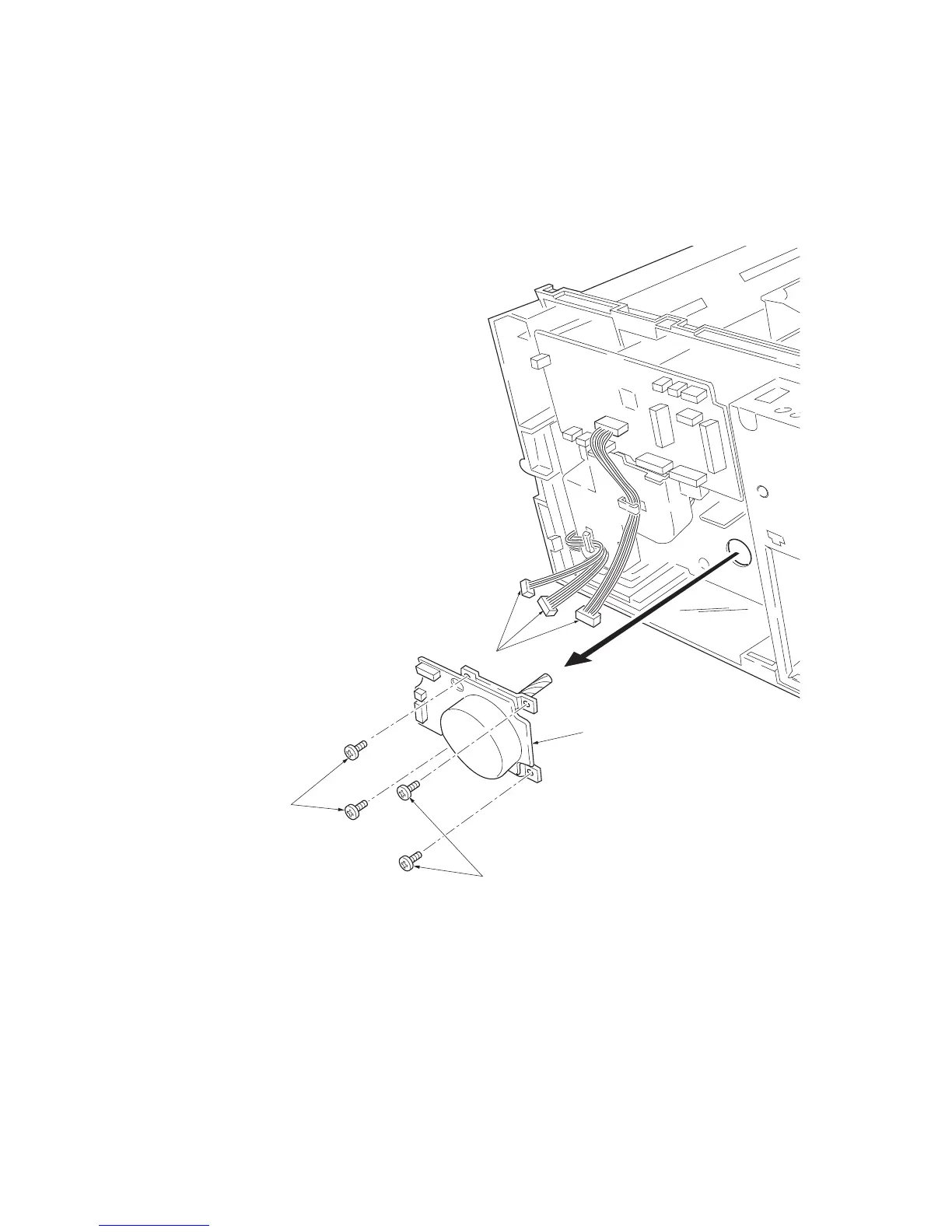

Figure 1-6-16 Removing the main motor
