1-6-4 Removing the feed roller
CAUTION
When refit the feed roller, fit the D-cut shaft into the D-shape hole of the feed roller.
1. Remove the paper cassette and the process
unit. (See page 1-6-2)
2. Stand the machine the front side up.
3. Move the feed roller in the direction (A) and
remove the feed roller.

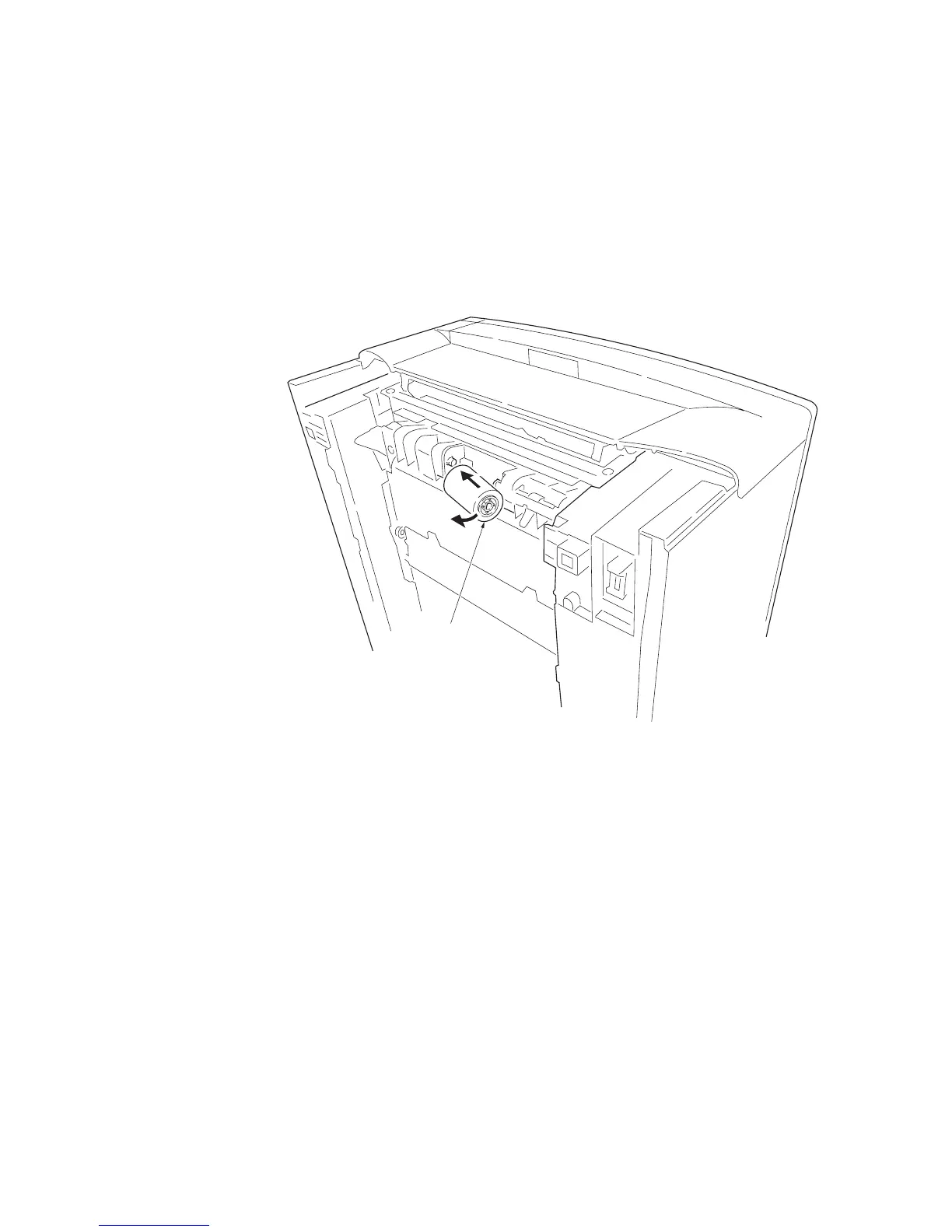

Figure 1-6-5 Removing the feed roller
Feed roller
(A)
