6. Remove one screw.
7. Remove the toner sensor and spring.
8. While pressing the latch by using the driver and then remove the paper guide.
9. Remove two screws and then remove the MP feed unit.

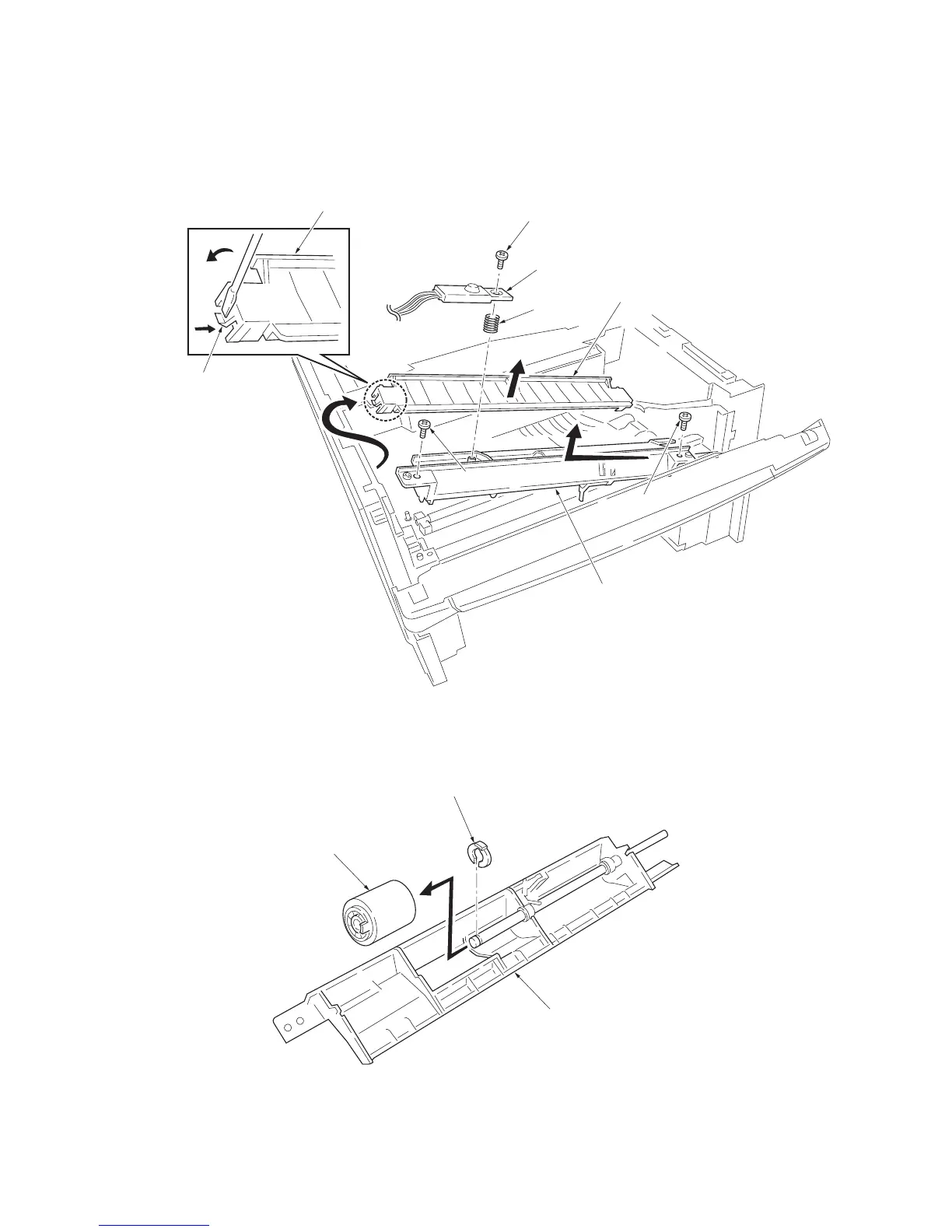

Figure 1-6-7 Removing the MP feed unit
10. Remove one stop ring and then remove the MP feed roller.
Figure 1-6-8 Removing the MP feed roller
T
Paper guide
Latch
Screw
oner sensor
Spring
Paper guide
Screw
MP feed unit
Screw
Stop ring
MP feed roller
MP feed unit
