6. Remove two screws at the back of the main
PWB.
7. Remove three screws from the parallel
interface connector and USB connector.
8. Remove the main PWB.

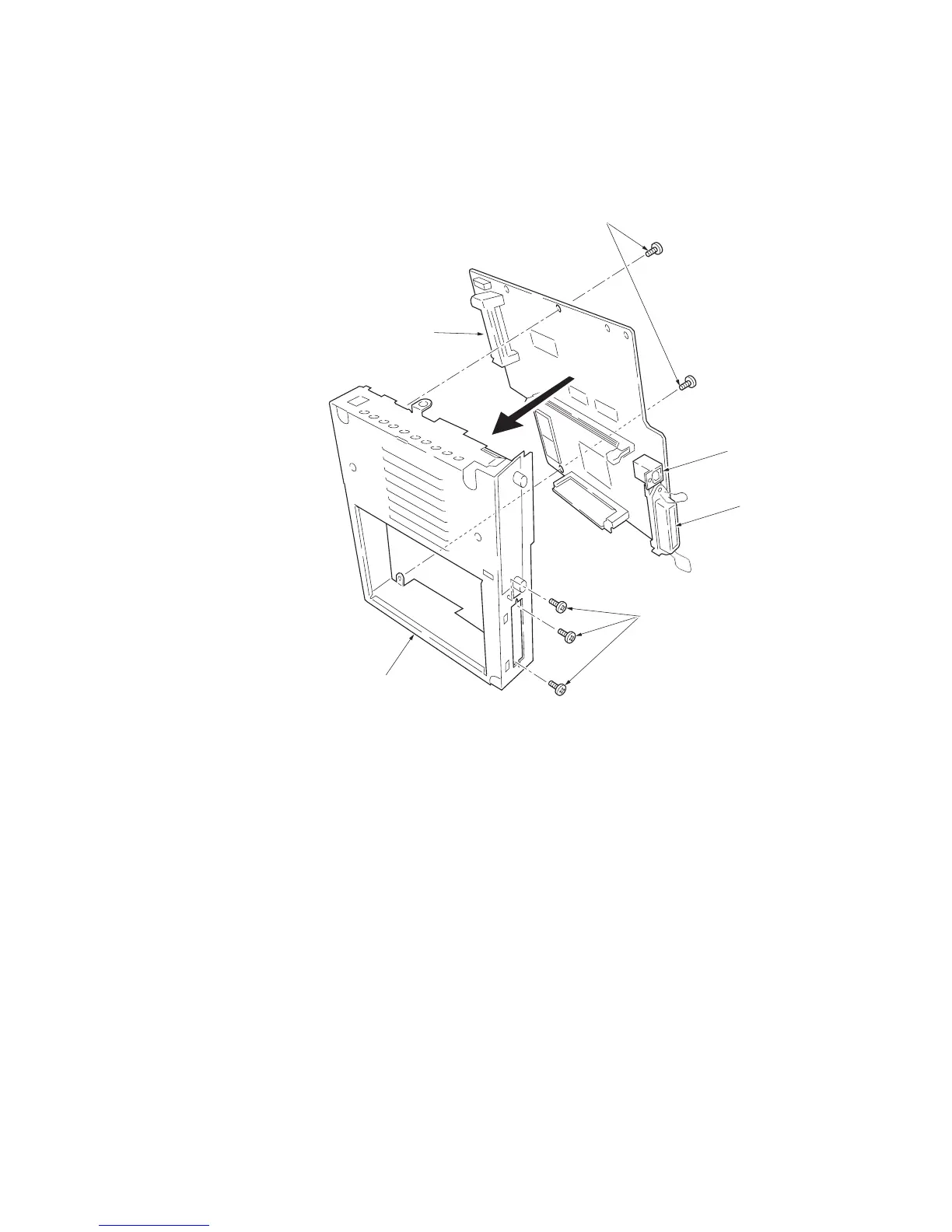

Figure 1-6-12 Removing the main PWB
Screws
Main PWB
Controller box
Screws
USB interface
connector
Parallel interface
connector
