Kyocera FS-1030D - Page 93

2G6
1-6-29
4. Remove three screws.
5. Remove two connectors from the laser
scanner unit.
6. Remove the laser scanner unit.
* When refitting the laser scanner unit,
tighten a screw in order of  from .
Screws
Conncetor
Laser scanner unit
Conncetor




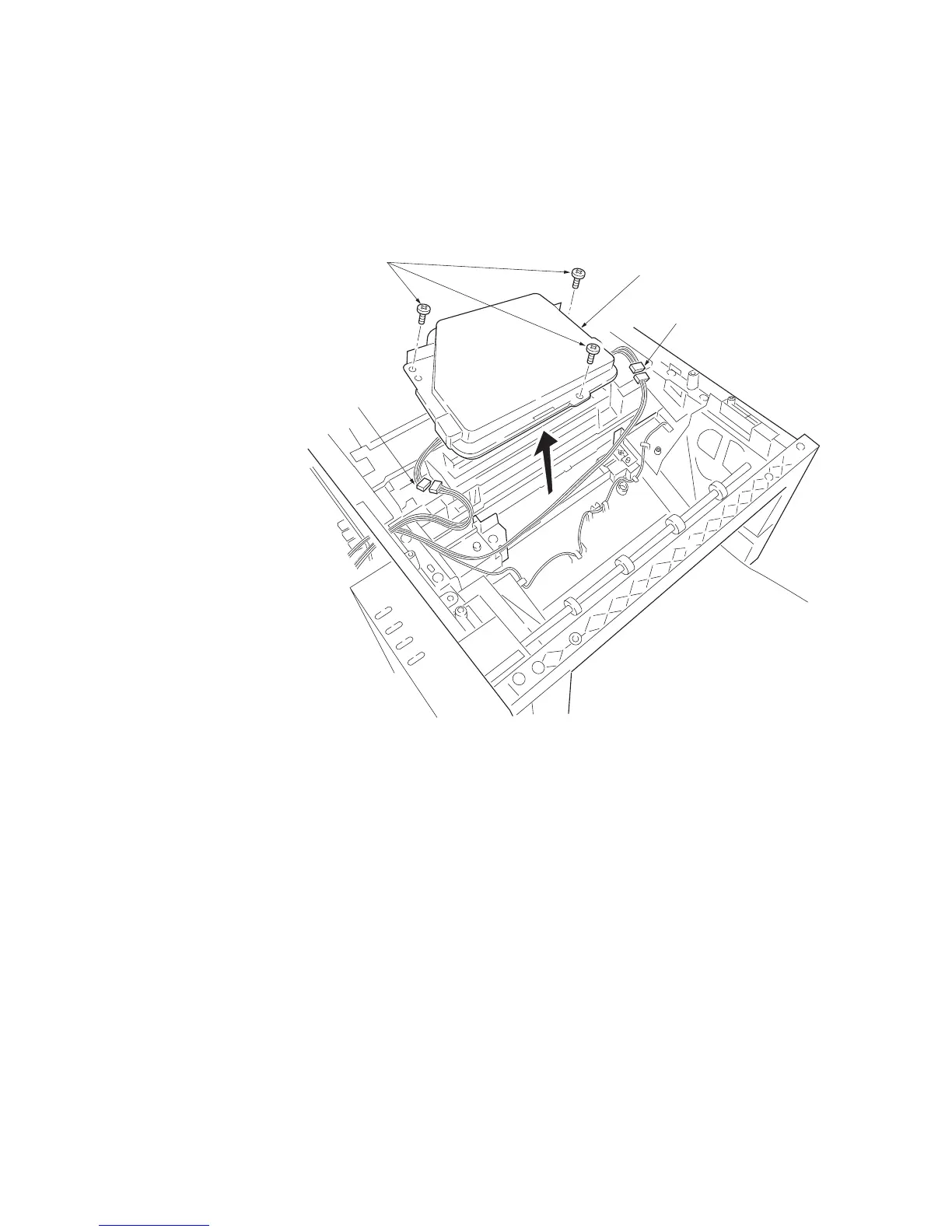

Figure 1-6-30 Removing the laser scanner unit
