General Maintenance 41

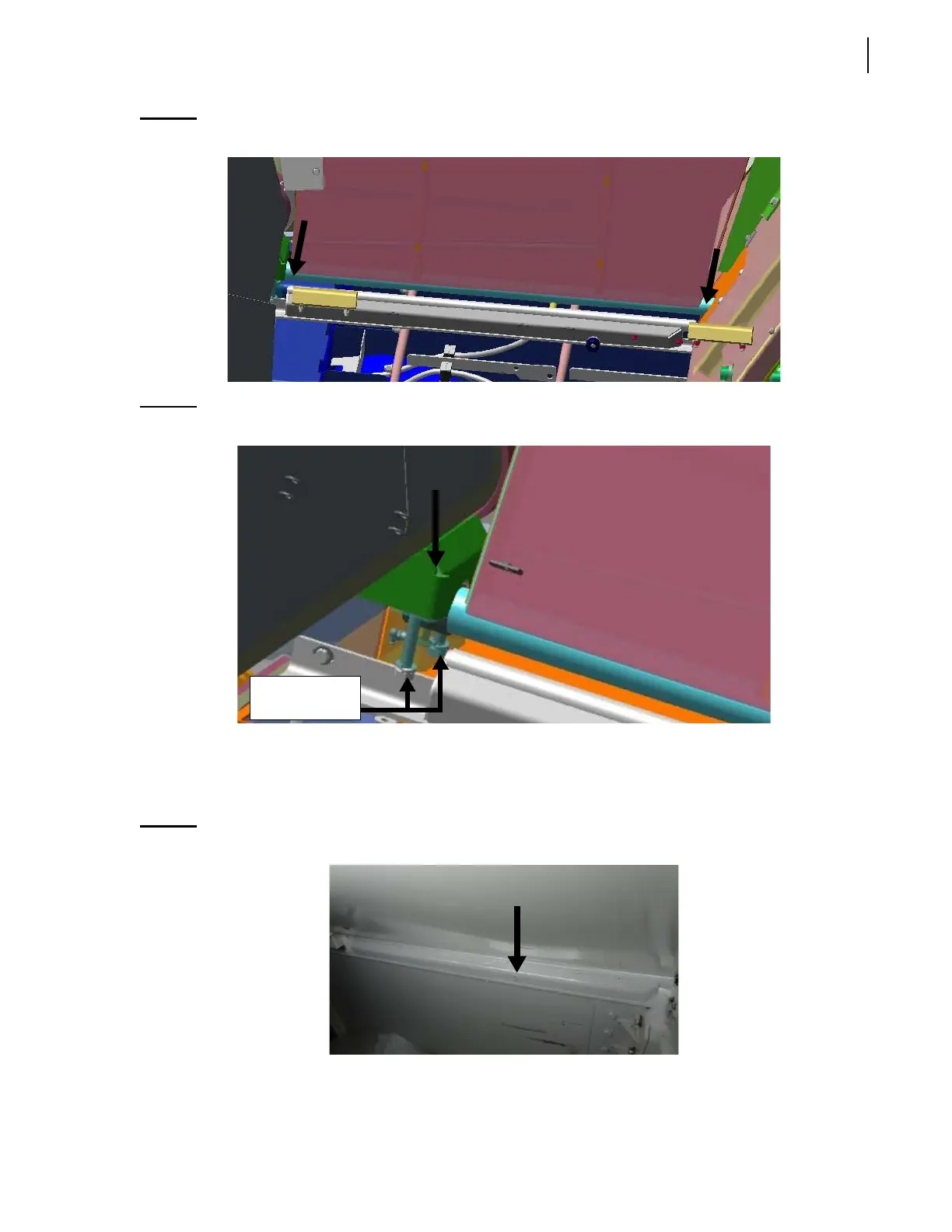

Figure 3-25
Chute shaft
Figure 3-26
Rear chute shaft bracket
1 l. Carefully lift the chute out of the hopper.
2. Remove all bolts that secure the hopper divider guard in place (see Figure 3-27).
3. Take off the hopper divider guard.
Figure 3-27
Hopper divider guard
4. Remove all bolts that secure the hopper divider (see Figure 3-28) to the packer.
5. Take the hopper divider out of the hopper using a lifting device.
Unscrew bolts
on bracket
