40 General Maintenance

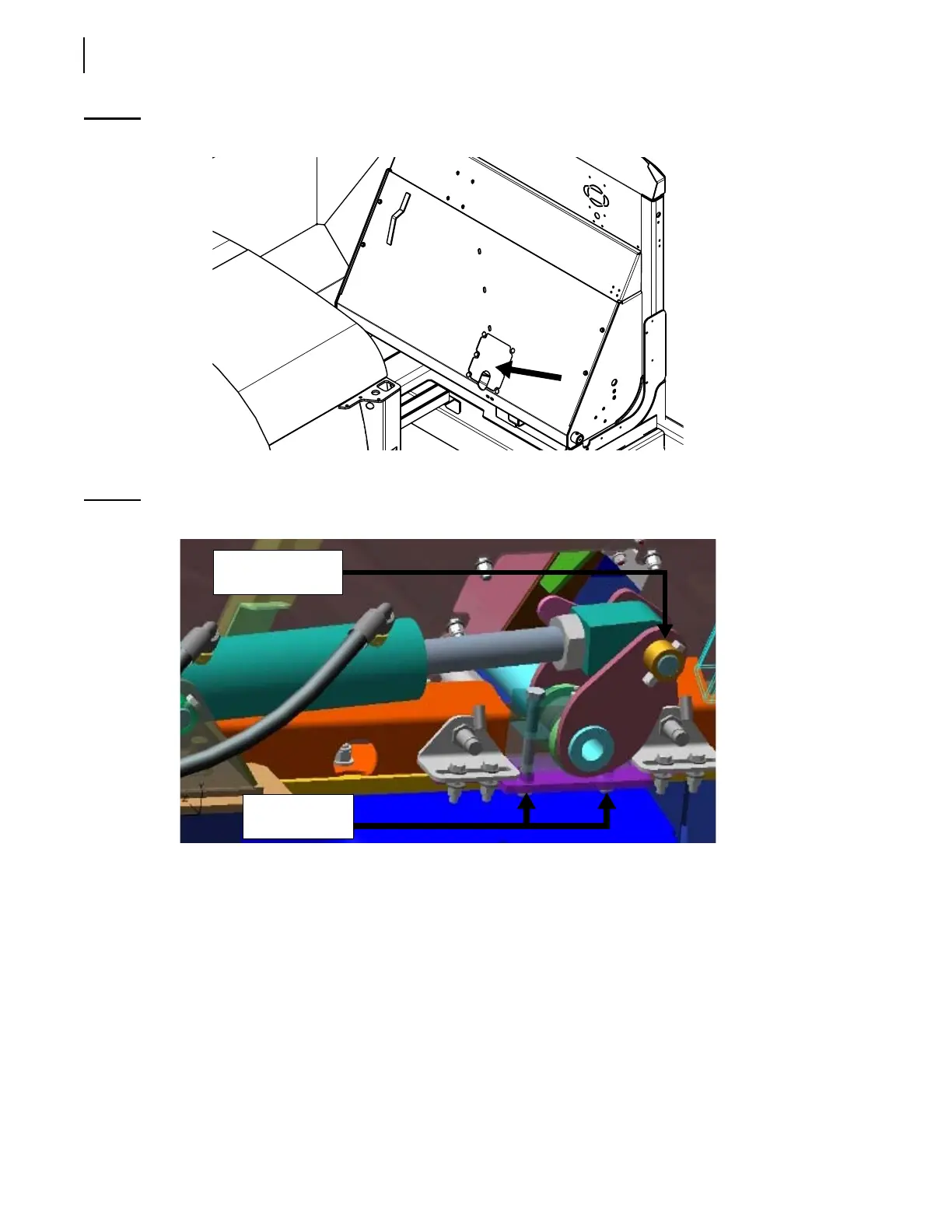

Figure 3-23
Chute shaft cover
1 i. Remove the chute cylinder rod-end pin (see Figure 3-24).
Figure 3-24
Chute cylinder
1 j. Unscrew the 2 bolts on the front shaft bracket to release the front end of the chute shaft
(see Figure 3-24).
1 k. Unscrew the 2 bolts on the rear shaft bracket to release the rear end of the chute shaft
(see Figure 3-26).
Remove pin to
release cylinder rod
Unscrew bolts
on bracket
