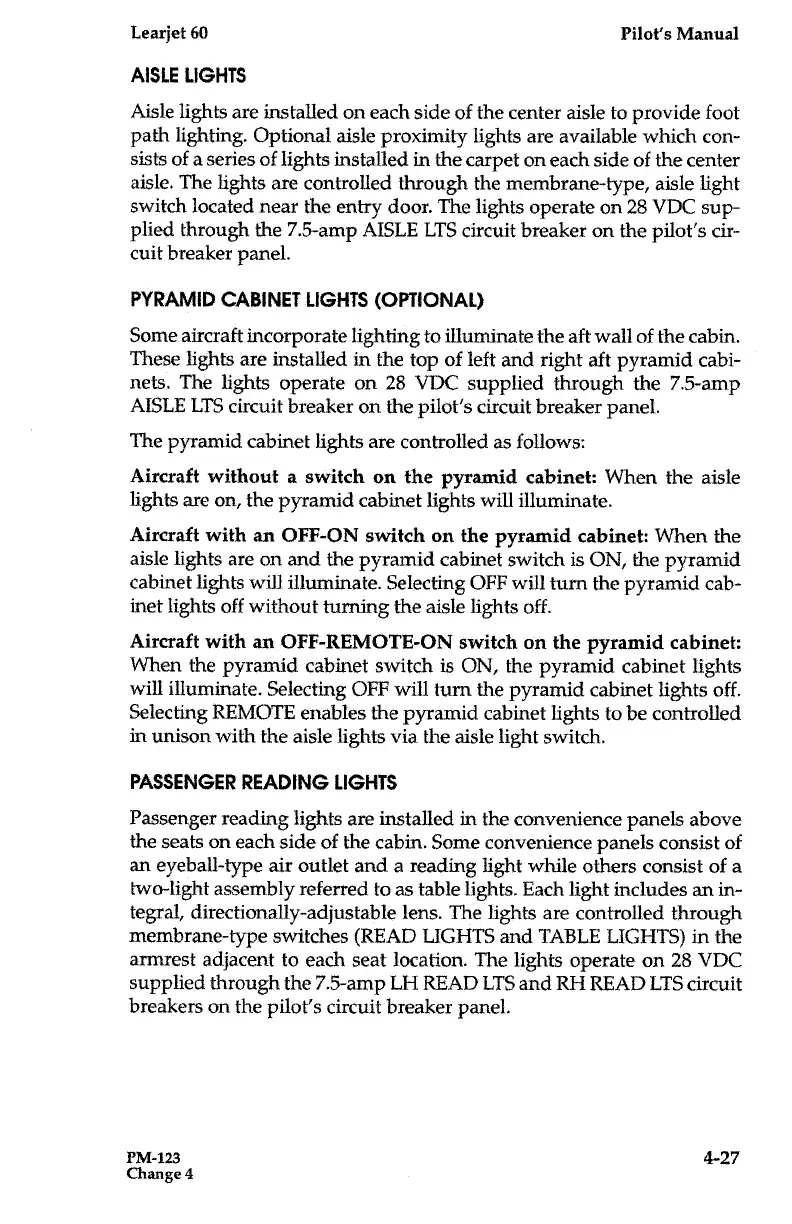

AISLE
LIGHTS
Aisle lights are
installed on each side of the center aisle to provide foot
path lighting . Optional aisle proximity lights
are available which con-
sists of a series of lights installed in the carpet
on each side of
the
center
aisle . The lights are controlled through the membrane-type, aisle light
switch located near the entry door . The lights operate on 28 VDC sup-
plied through the 7
.5-amp AISLE US circuit breaker on the pilot's cir-
cuit breaker panel .
PYRAMID CABINET
LIGHTS (OPTIONAL)
Some aircraft incorporate lighting to illuminate the
aft
wall
of the cabin
.
These lights are installed in the top of left and right aft pyramid cabi-
nets . The
lights operate on 28 VDC supplied through the 7 .5-amp
AISLE LTS circuit
breaker on the pilot's circuit breaker panel .
The pyramid cabinet lights are controlled as follows :
Aircraft without
a switch on the pyramid cabinet : When the aisle
lights are on, the pyramid cabinet lights will
illuminate .
Aircraft with an OFF-ON switch on the pyramid cabinet : When the
aisle
lights are on and the pyramid cabinet switch is ON, the pyramid
cabinet lights will
illuminate . Selecting OFF will turn the pyramid cab-
inet lights off without turning the aisle lights
off .
Aircraft with an OFF-REMOTE-ON switch on the pyramid cabinet :
When the pyramid cabinet switch is ON, the pyramid cabinet lights
will
illuminate . Selecting OFF will turn the pyramid cabinet lights off .
Selecting
REMOTE enables the pyramid cabinet lights to be controlled
in unison with the aisle lights via
the aisle
light
switch .
PASSENGER READING LIGHTS
Passenger reading lights
are installed in the convenience panels above
the seats on each side of the cabin . Some convenience
panels consist of
an eyeball-type air outlet and a reading light while others consist of a
two-light
assembly referred to as table lights . Each light includes an in-
tegral, directionally-adjustable
lens .
The lights
are controlled through
membrane-type switches (READ LIGHTS and TABLE LIGHTS) in the
armrest
adjacent to each seat location . The lights operate on 28 VDC
supplied through
the
7
.5-amp LHREAD LTSand RH READ LTS circuit
breakers on the pilot's circuit breaker panel .
