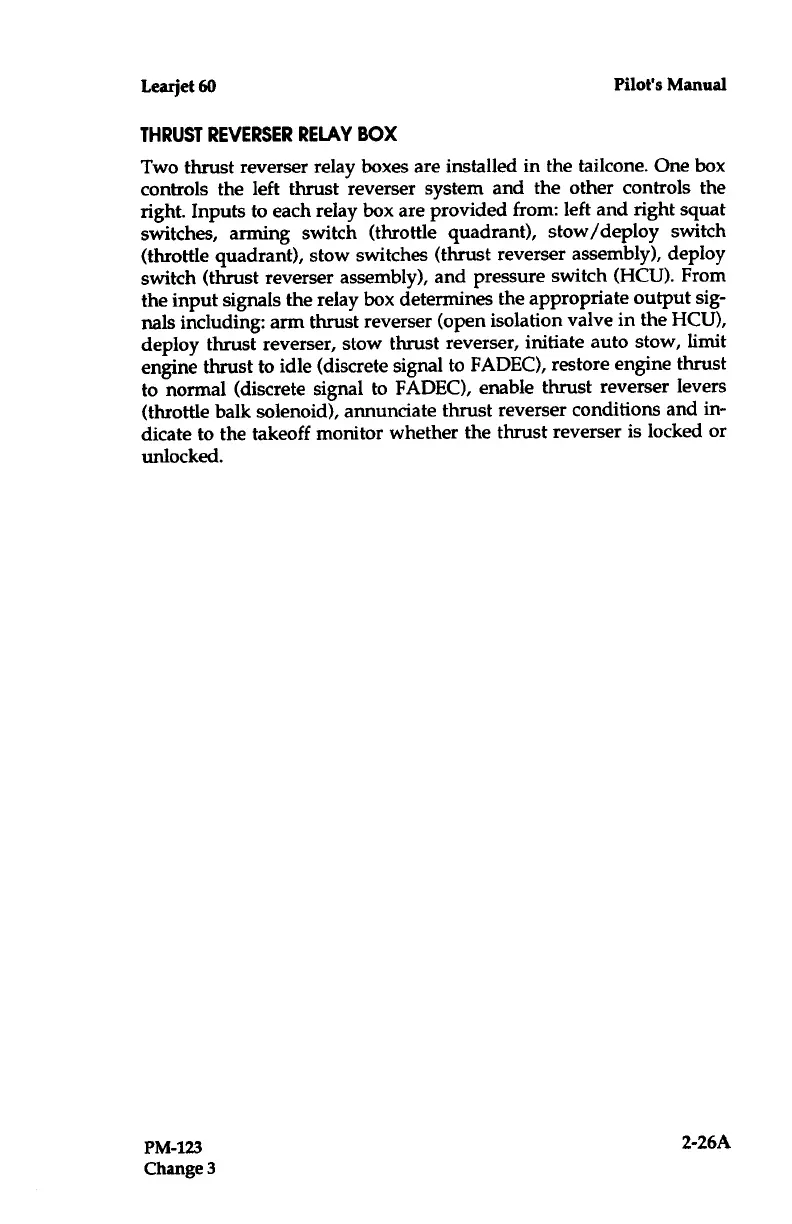

THRUST
REVERSER
RELAY
BOX
Two
thrust
reverser
relay
boxes
are installed in the tailcone
.
One
box
controls
the
left
thrust
reverser
system
and
the
other
controls
the
right
.
Inputs
to
each
relay
box
are
provided
from
:
left
and
right
squat
switches,
arming
switch
(throttle
quadrant),
stow/deploy
switch
(throttle
quadrant),
stow
switches
(thrust
reverser
assembly),
deploy
switch
(thrust
reverser
assembly),
and
pressure
switch
(HCU)
.
From
the
input
signals
the
relay
box
determines
the
appropriate
output
sig-
nals
including
:
arm
thrust
reverser
(open
isolation
valve
in
the
HCU),
deploy
thrust reverser,
stow
thrust
reverser,
initiate
auto
stow,
limit
engine
thrust
to
idle
(discrete
signal
to
FADEC),
restore
engine
thrust
to
normal
(discrete
signal
to
FADEC),
enable
thrust
reverser
levers
(throttle
balk
solenoid),
annunciate
thrust
reverser
conditions
and
in-
dicate
to
the
takeoff
monitor
whether
the
thrust
reverser
is
locked
or
unlocked
.
PM-123
2-26A
Change
3
