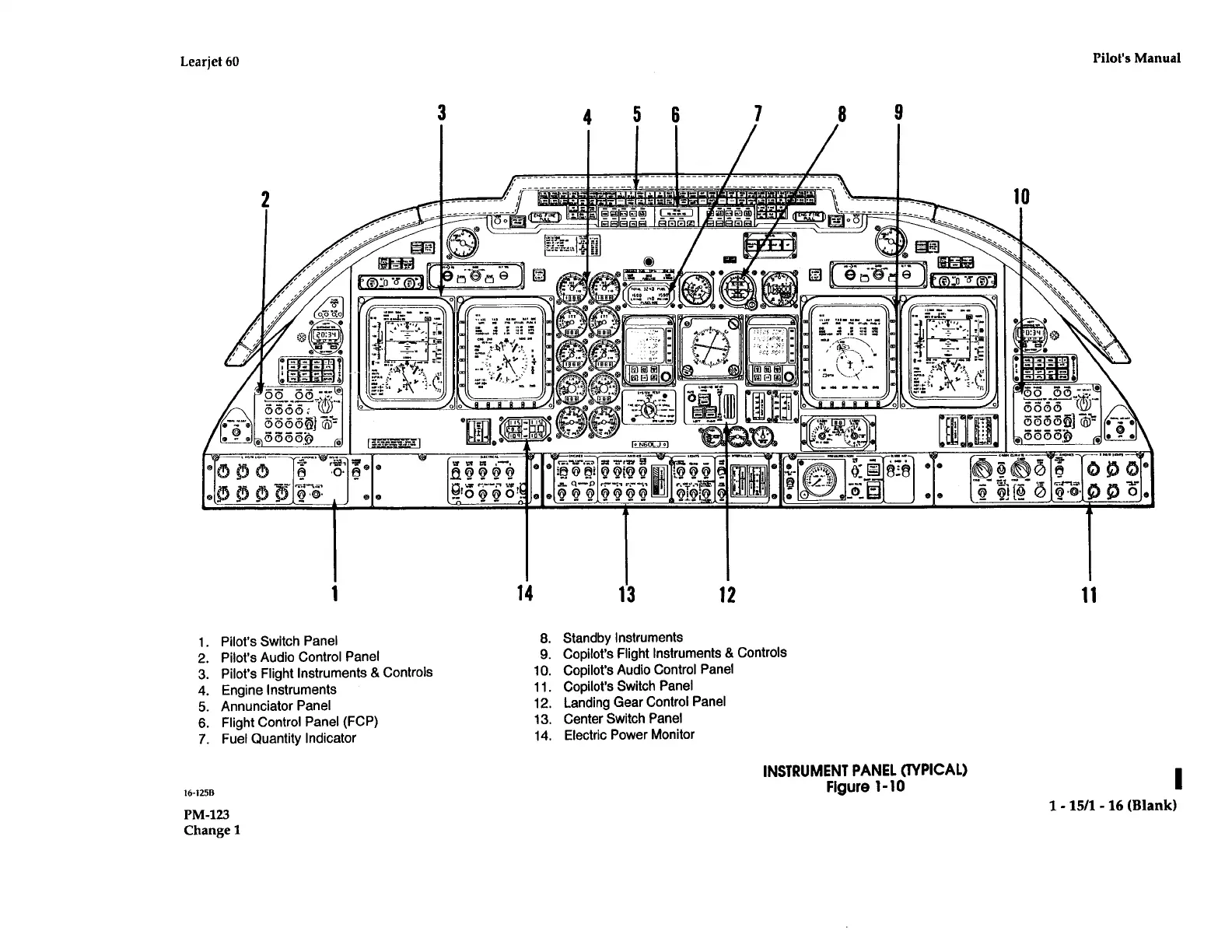

Learjet 60 - Instrument Panel (Typical) (Figure 1-L0)

Learjet
60
16-125B
PM-123
Change l
INSTRUMENT
PANEL (TYPICAL)
Figure 1-10
Pilot's Manual
1-15/1-16 (Blank)
1 .
Pilot's Switch Panel
8 . Standby Instruments
2 . Pilot's
Audio Control Panel
9 .
Copilot's Flight Instruments &
Controls
3 .
Pilot's Flight Instruments
& Controls
10 . Copilot's
Audio Control Panel
4 .
Engine Instruments
11 . Copilot's Switch Panel
5 . Annunciator
Panel
12 . Landing
Gear Control Panel
6 .
Flight Control Panel (FCP)
13 . Center Switch Panel
7 . Fuel Quantity
Indicator
14 .
Electric Power Monitor
