Pilot's Manual

Learjet 60
AFT JUMP SEAT
An optional jump seat (figure 7-17) may be installed in the aft lavatory
area . The jump seat is accessed by unfolding the seat cushion out
from
the top of the storage box adjacent to the
aft baggage bulkhead . Three-
point combined seat belts
with
a
single-point release are used for the
jump seat
and are located on top of the storage box .
To use the three-point seat belt, bring the seat belt around the hips first,
latch and tighten by pulling the
webbing
on
the right side of the latch
assembly
.
The
shoulder harness
is
located above the passengers left
shoulder . Grab the shoulder harness and pull across the body and at-
tach to the opposite side of the lap belt . To unfasten the belts, first re-
move and stow the shoulder harness .
The
shoulder
harness is stowed
by gently
pulling
to activate
the reel that rolls it into the bulkhead . Use
caution
not to pull the shoulder harness too aggressively causing the
belt to quickly fly into its reel, thus possibly damaging
any surrounding
wall covering . The seat belt is released by
lifting up on
the
belt assem-
bly .
The
jump seat may be
stowed
by
folding it back onto the storage
compartment .
The life vest for the jump seat is stowed
under the
seat and is accessed
by opening the front panel . Due to
emergency exit access assistance and
requirements
the
jump
seat is certified for adults only .

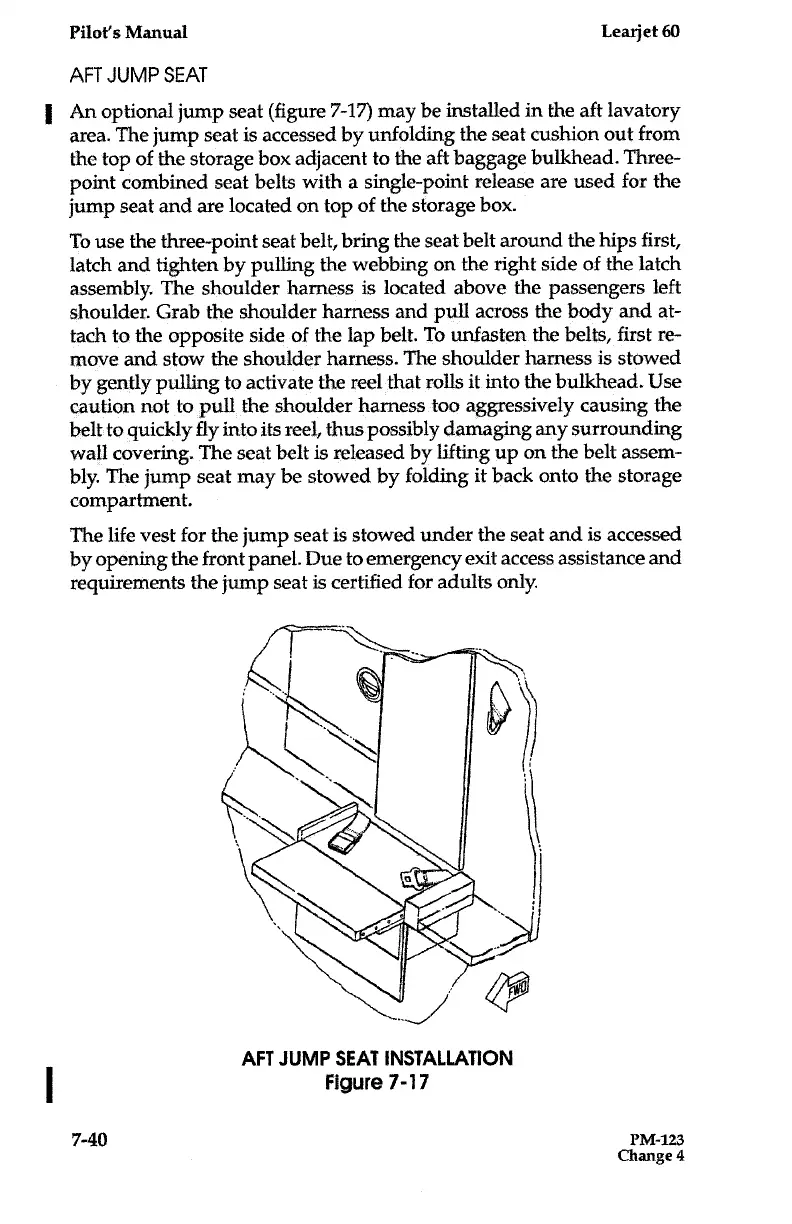

AFT JUMP SEAT INSTALLATION
Figure 7-17
7- 40

PM-123
Change 4
