Learjet 60 - PITCH TRIM Light; Pitch Trim System Block Diagram (Figure 5-2)

Learjet 60

Pilot's Manual
PITCH TRIM LIGHT
An amber
PITCH TRIM annunciator light, located on the glareshield
annunciator
panel,
is
installed to alert the crew of primary pitch
trim
system malfunctions
during flight . Additionally, the PITCH
TRIM
light will illuminate
whenever either Control Wheel Master Switch
(MSW) is depressed .
CONTROLWHEEL
MASTERSWITCH
COPILOTS
CONTROL
WHEEL
TRIM
SWITCH
w .a+

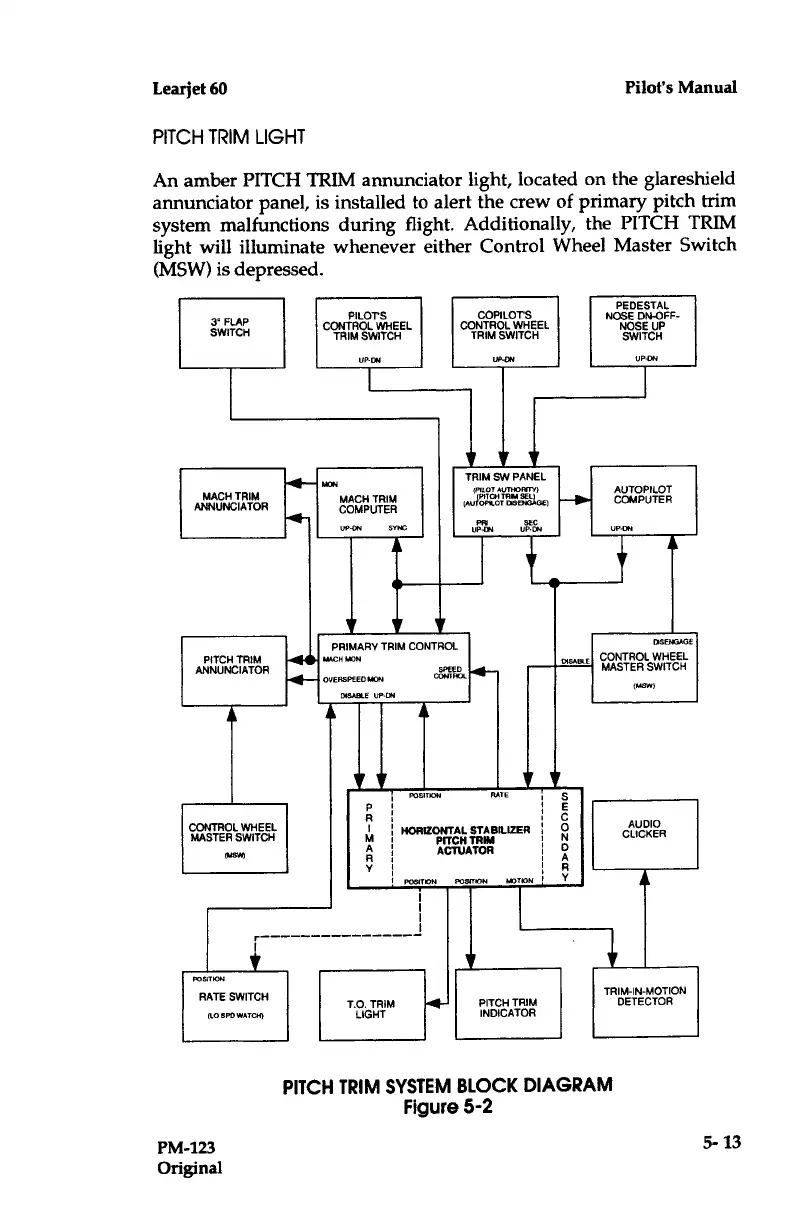

PITCH TRIM
SYSTEM BLOCK DIAGRAM
Figure
5-2
PM-123

5- 1 3
Original
