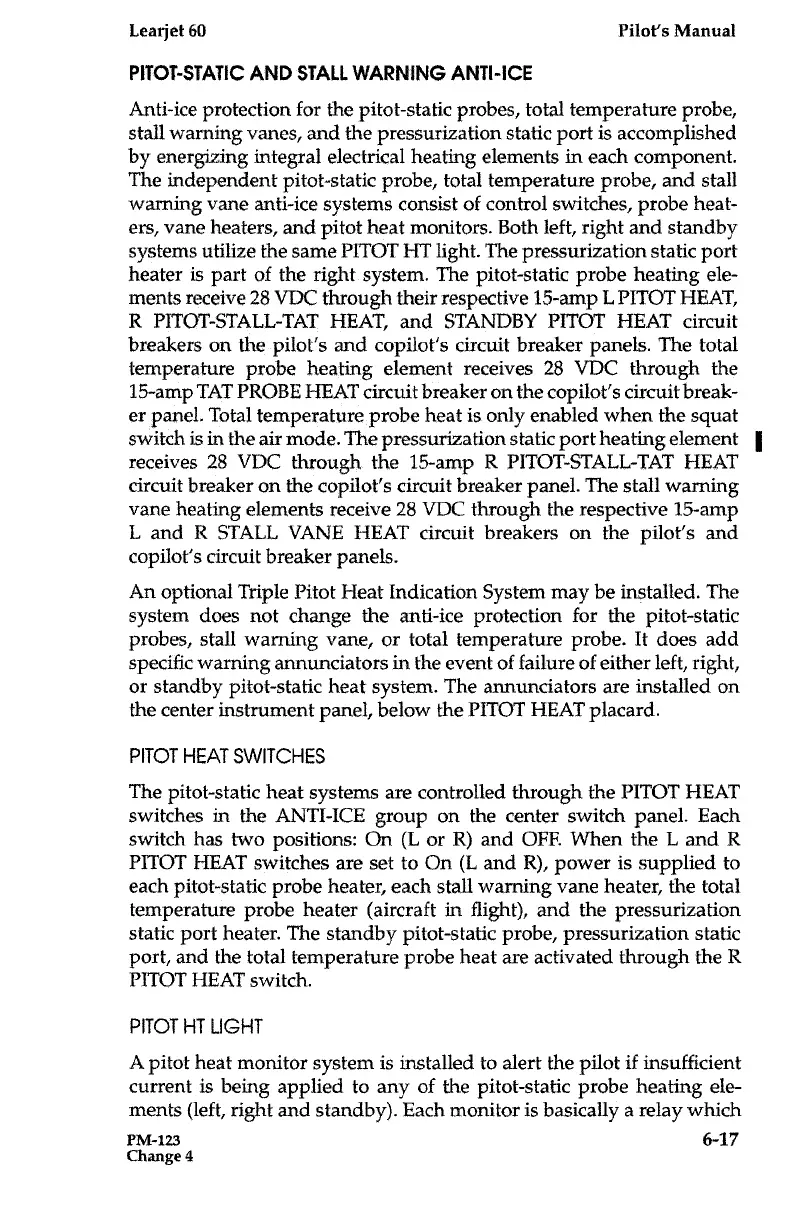

Learjet
60
Pilot's
Manual
PITOT-STATIC
AND
STALL
WARNING
ANTI-ICE
Anti-ice
protection
for
the
pitot-static
probes,
total
temperature
probe,
stall
warning
vanes,
and
the
pressurization
static
port
is
accomplished
by
energizing
integral
electrical
heating
elements
in
each
component
.
The
independent
pitot-static
probe,
total
temperature
probe,
and
stall
warning
vane
anti-ice
systems
consist
of control
switches,
probe
heat-
ers,
vane
heaters,
and
pitot
heat
monitors
.
Both
left,
right
and
standby
systems
utilize
the
same
PITOT
HT
light
.
The
pressurization
static
port
heater
is
part
of the
right
system
.
The
pitot-static
probe
heating
ele-
ments
receive
28
VDC
through
their
respective
15-amp
L
PITOTHEAT,
R
PITOT
STALL-TAT
HEAT,
and
STANDBY
PITOT
HEAT
circuit
breakers
on
the
pilot's
and
copilot's
circuit
breaker panels
.
The
total
temperature
probe
heating
element
receives
28
VDC
through
the
15-amp
TAT
PROBE
HEAT
circuit
breaker
on
the
copilot's
circuit
break-
er
panel
.
Total
temperature
probe
heat
is
only
enabled
when
the
squat
switch
is
in
the
air
mode
.
The
pressurization
static
port
heating
element
receives
28
VDC
through
the
15-amp
R
PITOT
STALL-TAT
HEAT
circuit
breaker
on
the
copilot's
circuit
breaker
panel
.
The
stall
warning
vane
heating elements
receive 28
VDC
through
the
respective
15-amp
L
and
R
STALL
VANE
HEAT
circuit
breakers
on
the
pilot's
and
copilot's
circuit
breaker
panels
.
An
optional
Triple
Pitot
Heat
Indication
System
may
be
installed
.
The
system does
not
change
the
anti-ice
protection
for
the
pitot-static
probes,
stall
warning
vane,
or
total
temperature
probe
.
It
does
add
specific
warning
annunciators
in
the
event
of
failure
of either
left,
right,
or
standby
pitot-static
heat system
.
The
annunciators
are
installed
on
the
center
instrument
panel,
below
the
PITOT
HEAT
placard
.
PITOT
HEATSWITCHES
The
pitot-static
heat
systems
are
controlled
through
the
PITOT
HEAT
switches
in
the
ANTI-ICE
group
on
the
center
switch
panel
.
Each
switch
has
two
positions
:
On
(L or R)
and
OFF
.
When
the
L
and
R
PITOT
HEAT
switches
are
set
to
On
(L
and
R),
power
is
supplied
to
each
pitot-static
probe
heater,
each
stall
warning
vane
heater,
the
total
temperature probe
heater
(aircraft
in
flight),
and
the pressurization
static
port heater
.
The
standby
pitot-static
probe,
pressurization
static
port,
and
the
total
temperature
probe
heat
are
activated
through
the
R
PITOT
HEAT
switch
.
PITOT
HT
LIGHT
A
pitot
heat
monitor
system
is
installed
to
alert
the
pilot
if
insufficient
current
is
being
applied
to
any
of the
pitot-static
probe
heating
ele-
ments
(left,
right
and
standby)
.
Each
monitor
is
basically
a
relay
which
PM-123
6-17
Change
4
