Learjet 60 - Tables

Pilot's Manual

Learj060
Tables
A pull-out,
bi-fold desktop (figure 7-11) may be located in the panel in
front of the
forward right-hand seat . The desktop is pulled up and
away from the wall and the
leaf unfolded for use .
If a divan is installed in place of the seat, a cabinet
with a fold-out table
maybe
installed in lieu of the desktop table . The table
is accessed by
pressing the button to open the compartment door,
pulling the table in-
board and
unfolding it up . To stow the table, fold the table
leaf back
onto the drawer, fold the
table into the access structure, and press the
tab on the top rear of the
table-cabinet connection which releases the
lock, thus allowing the table to be stored back
into the cabinet .
Two
pulhout, bi-fold card tables (figure 7-11) are available
in the side-
wall between the
aft
and
middle seat locations . The card table is pulled
up and away from the wall and the
leaf unfolded for use .
When the optional bi-fold hexagon shaped bridge table is connected to
the foldout card tables, A creates a full width table When not in use, it
is folded and stored in the aft
partition in front of the vanity .

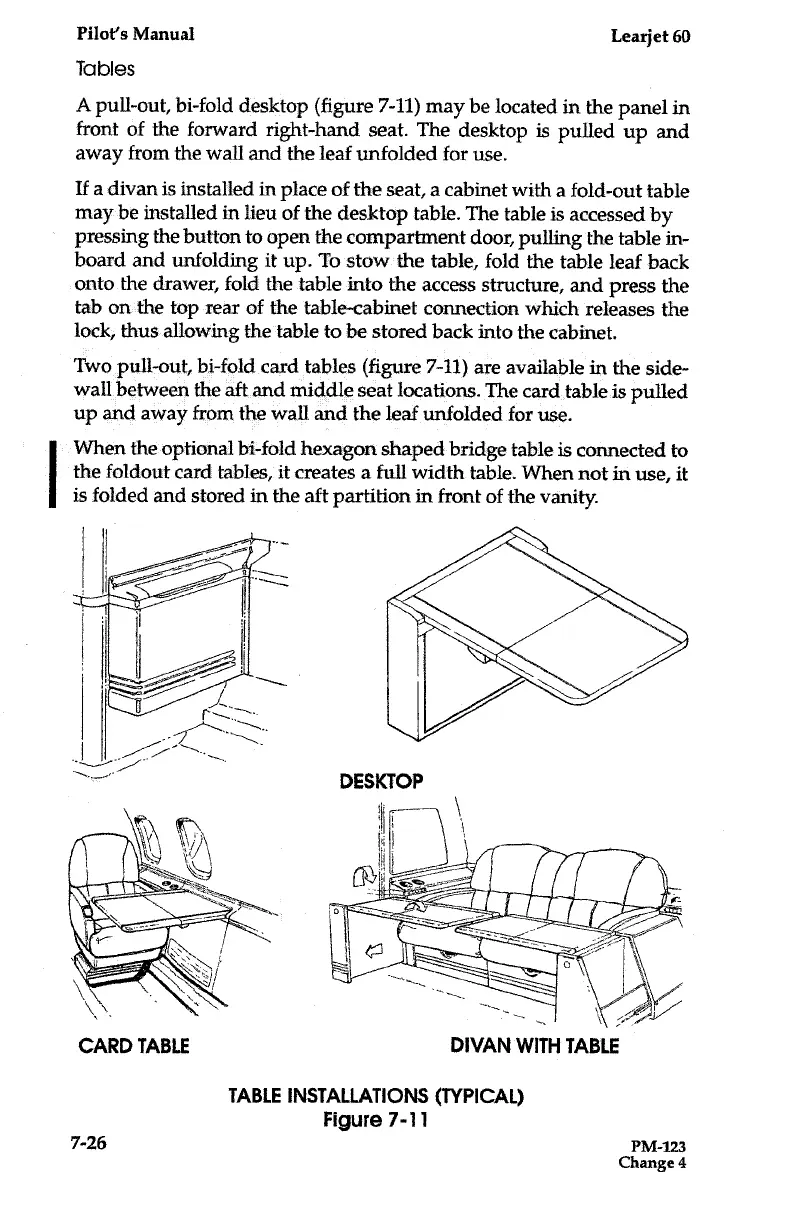

CARD TABLE

DIVAN WITH
TABLE
TABLE INSTALLATIONS (TYPICAL)
Figure 7-11
726

PM-123
Change 4
