Learjet b0

Pilot's Manual
configured to securely store wine
glasses or incorporate an optional ice
liner to hold wine bottles . Access is by pressing the
button at the top,
center section of each panel drawer .
Optional aft pyramid cabinets (figure 7-10) may be located behind the
aft seats . Access is by pressing the button at the top, center section of
each door
panel . The
right-hand cabinet door opens outward for mis-
cellaneous storage . It also incorporates a venting panel near the floor
whichmust not be blocked . This return-air vent is connected to the aft
baggage compartment and is used during decompression .
The left-hand cabinet contains a
magazine rack that slides inboard
when the cabinet latch is pressed . Both cabinets may include two lights
on top of each cabinet that illuminate the rear bulkhead wall .
PM-123
Change 4
LH

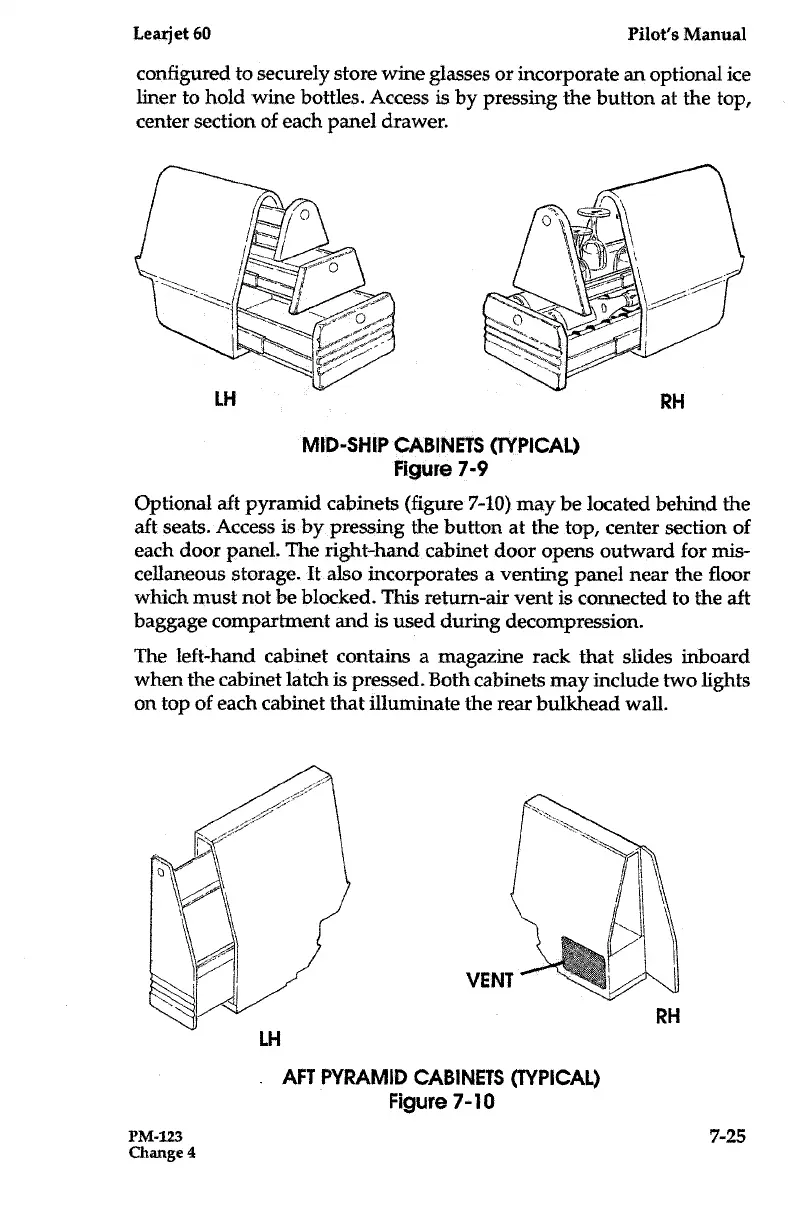

MID-SHIP CABINETS (TYPICAL)
Figure 7-9
AFT PYRAMID CABINETS (TYPICAL)
Figure 7-10
RH
7- 25
