Learjet 60 - Engine Oil System Schematic 2-2)

Learjet
60

Pilot's Manual
SIPHON
BREAK

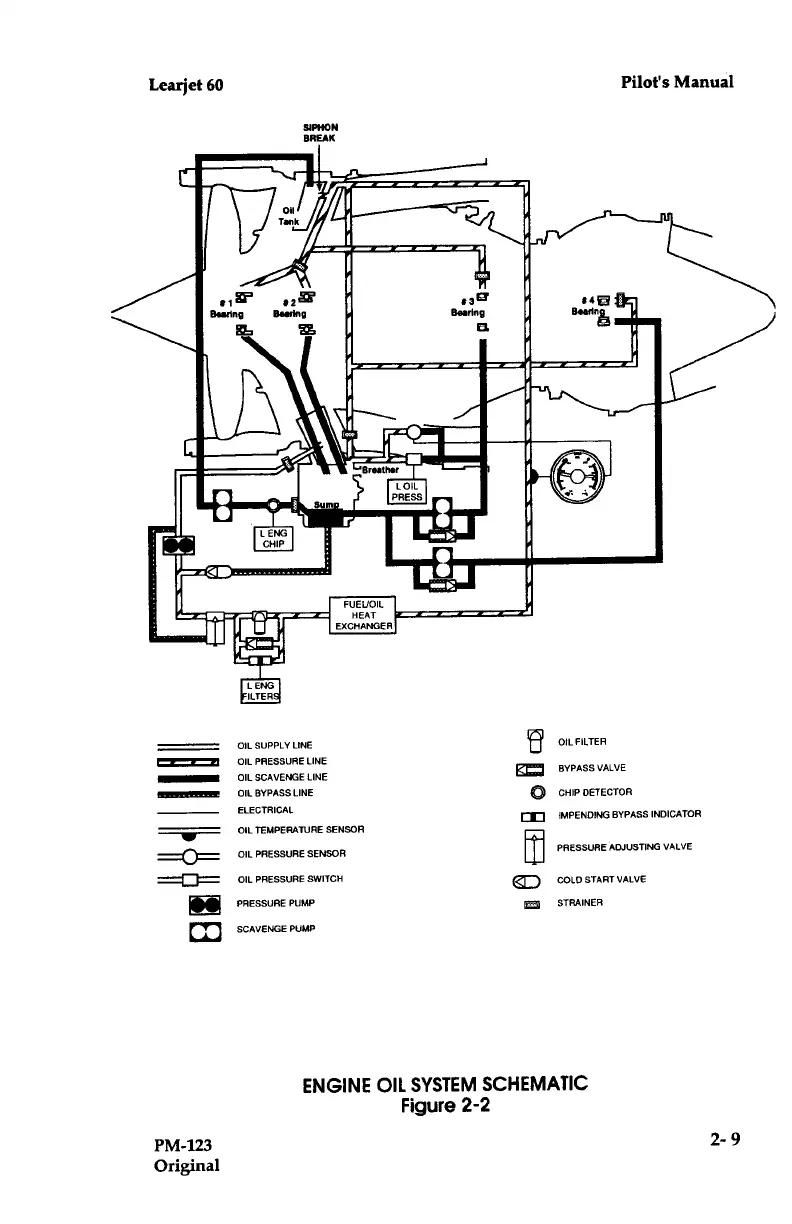

ENGINE OIL SYSTEM
SCHEMATIC
Figure 2-2
PM-123

2-9
Original
OIL SUPPLY LINE
OIL FILTER
OIL PRESSURE LINE
BYPASS VALVE
OIL SCAVENGE LINE
OIL BYPASS LINE CHIP DETECTOR
ELECTRICAL
m
IMPENDING BYPASS
INDICATOR
OIL
TEMPERATURE SENSOR
PRESSURE ADJUSTING VALVE
OIL
PRESSURE SENSOR
OIL PRESSURESWITCH
COLD
STARTVALVE
PRESSUREPUMP STRAINER
SCAVENGE PUMP
