Learjet 60

Pilot's Manual
REMOTE CABIN TEMPERATURE CONTROLS
A remote cabin temperature control (figure 7-15) is located on the cabin
control switch panel in the cabin armrest .
When the AUTO-CABIN-MAN switch located below the
CABIN HOT
COLD selector on the copilot's switch panel is set to CABIN, control for
cabin temperature is given to the cabin control switch panel .
On aircraft 60-001 thru 60-103, pressing the up or down buttons
will
vary
the
temperature
between
60°F (16°C) and 90°F (32°C) . The relative
temperature selected by the switch is indicated by the six LED lights on
the membrane panel .
On aircraft 60-104 & Subsequent, Pressing the MENU button will cause
the cabin control switch panel' to advance through the user menu
items
until temperature function is shown . The menu item consists of a bar-
graph with "C" at one end and "H" at the other . There are thirty-two
different settings . The select up and down buttons are used to raise and
lower the setting .
CAM
TEMP
HIM
(Aircraft 60-001 thru 60-103)
(Aircraft 60-104 and Subsequent)

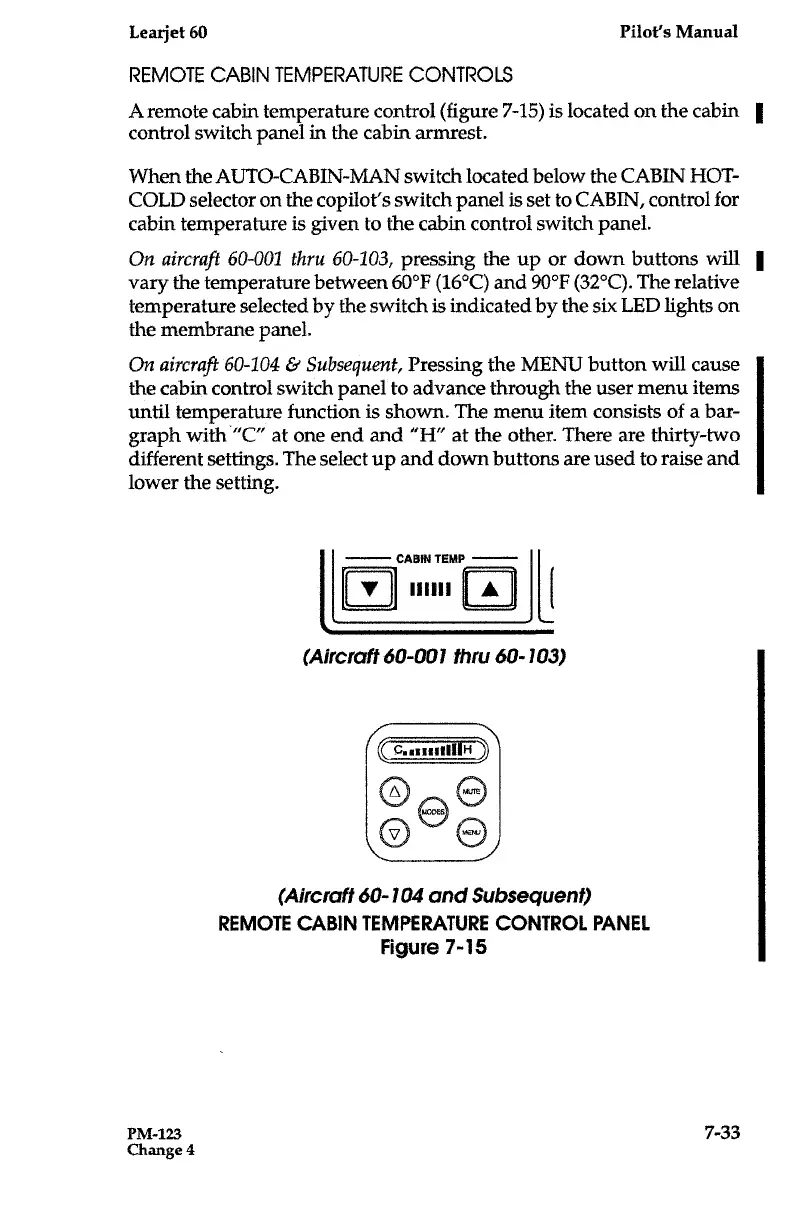

REMOTE CABIN TEMPERATURE CONTROL PANEL
Figure 7-15
PM-its

7-33
Change 4
