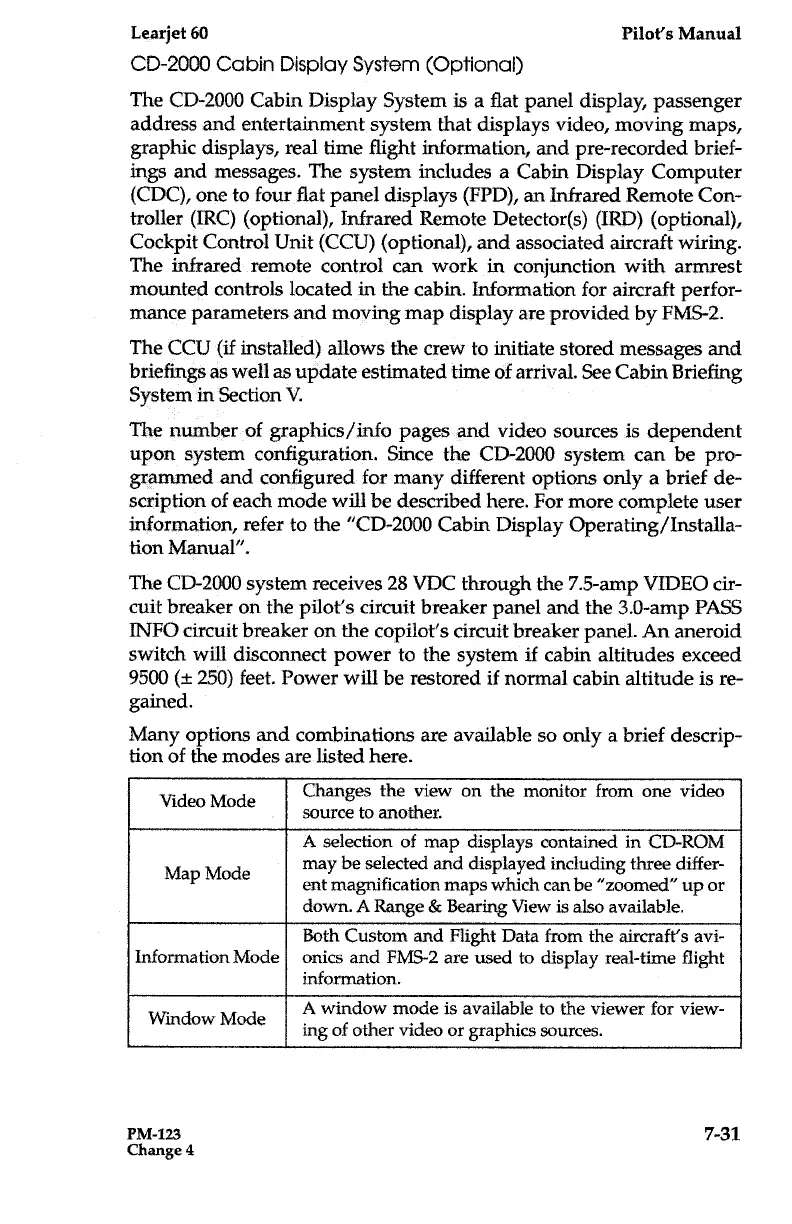

CD-2000 Cabin Display System (Optional)
The
CD-2000 Cabin Display System is a flat panel display, passenger
address and entertainment system that displays video, moving maps,
graphic displays, real time flight
information, and pre-recorded brief-
ings and messages . The system includes a Cabin
Display
Computer
(CDC), one to four flat panel displays (FPD), an Infrared Remote Con-
troller (IRC) (optional), Infrared Remote Detector(s) (IRD) (optional),
Cockpit Control Unit (CCU) (optional), and associated aircraft wiring .
The infrared remote control can work in
conjunction
with
armrest
mounted controls located in the cabin . Information for aircraft perfor-
mance parameters and moving map display are provided by FMS-2-
The
CCU (if installed) allows the
crew to initiate stored messages and
briefings as well as update estimated time of arrival .
See Cabin
Briefing
System in Section V
The number of graphics/info
pages and video sources is dependent
upon system configuration . Since the CD-2000 system
can be pro-
grammed and configured for many different options only a brief de-
scription
of each mode will be described here . For more complete user
information, refer
to the "CD-2000 Cabin Display Operating/Installa-
tion Manual" .
The CD-2000 system receives 28 VDC through the 7 .5-amp VIDEO cir-
cuit breaker on the pilot's circuit breaker panel and the 3 .0-amp PASS
INFO circuit
breaker on
the
copilot's circuit breaker panel . An aneroid
switch will disconnect power to the
system
if
cabin altitudes exceed
9500 (± 250) feet . Power will be restored if normal cabin altitude
is
re-
gained .
Many options and
combinations are available so only a brief descrip-
tion of the modes are listed here .
Video Mode
Map
Mode
Information Mode
Window Mode
Changes the view on the monitor from one video
source to another .
A selection of map displays contained in CD-ROM
may be selected and
displayed including three differ-
ent magnification maps which can be "zoomed" up or
down . A Range & Bearing View is also available .
Both Custom and Flight Data from the aircraft's avi-
onics and
FMS-2
are
used to display real-time flight
information .
A window mode is available to the viewer for view-
ing of other video or graphics sources .
